Model: SD-6100 | UPC: 800837001917

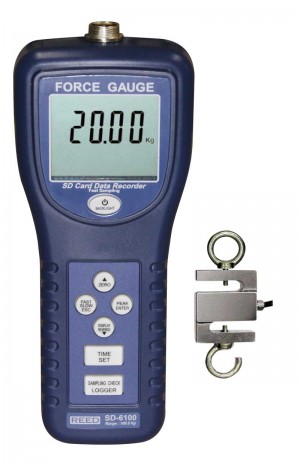

Real-time data logger with integrated SD memory card (optional) measures/records push and pull forces up to 220lb (100kg) and feature a reversible display ensuring measurements are easily read, regardless of testing direction.

Datasheet Manual

REED SD-6100 Offers

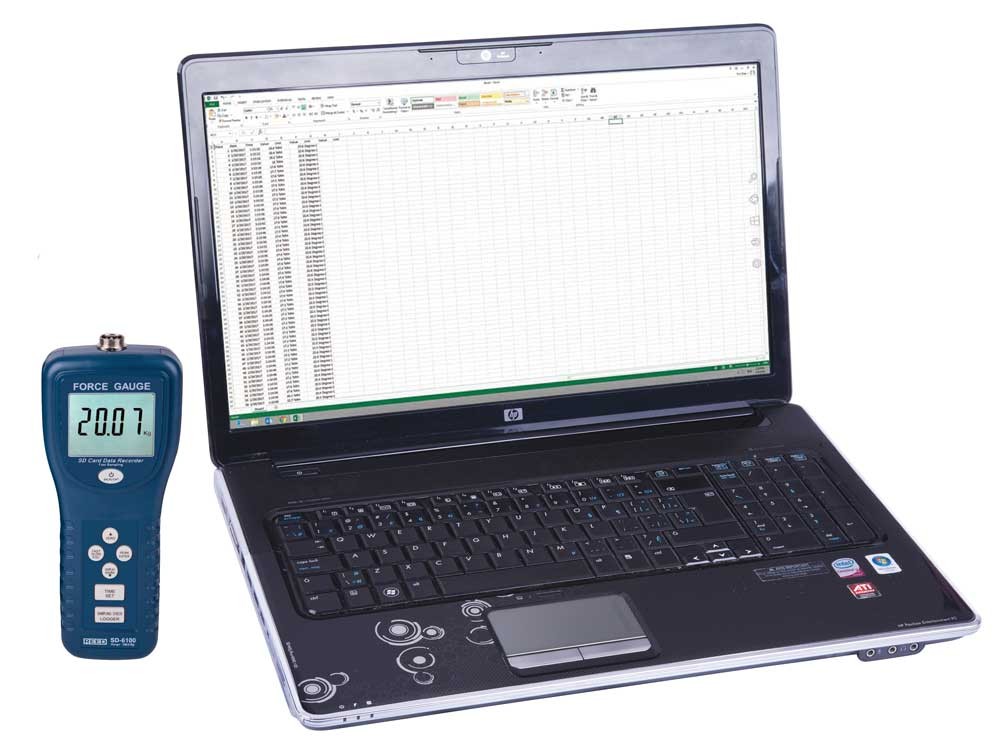

This gauge has the ability to measure push and pull forces up to 220lbs (100kg) and features a reversible display ensuring measurements are easily read, regardless of the testing direction. The SD-6100 features a real-time data logger with a memory card slot. Using an SD card (max 16Gb), a user can select the desired sampling rate and quickly generate an Excel file on an SD card without the use of the software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.

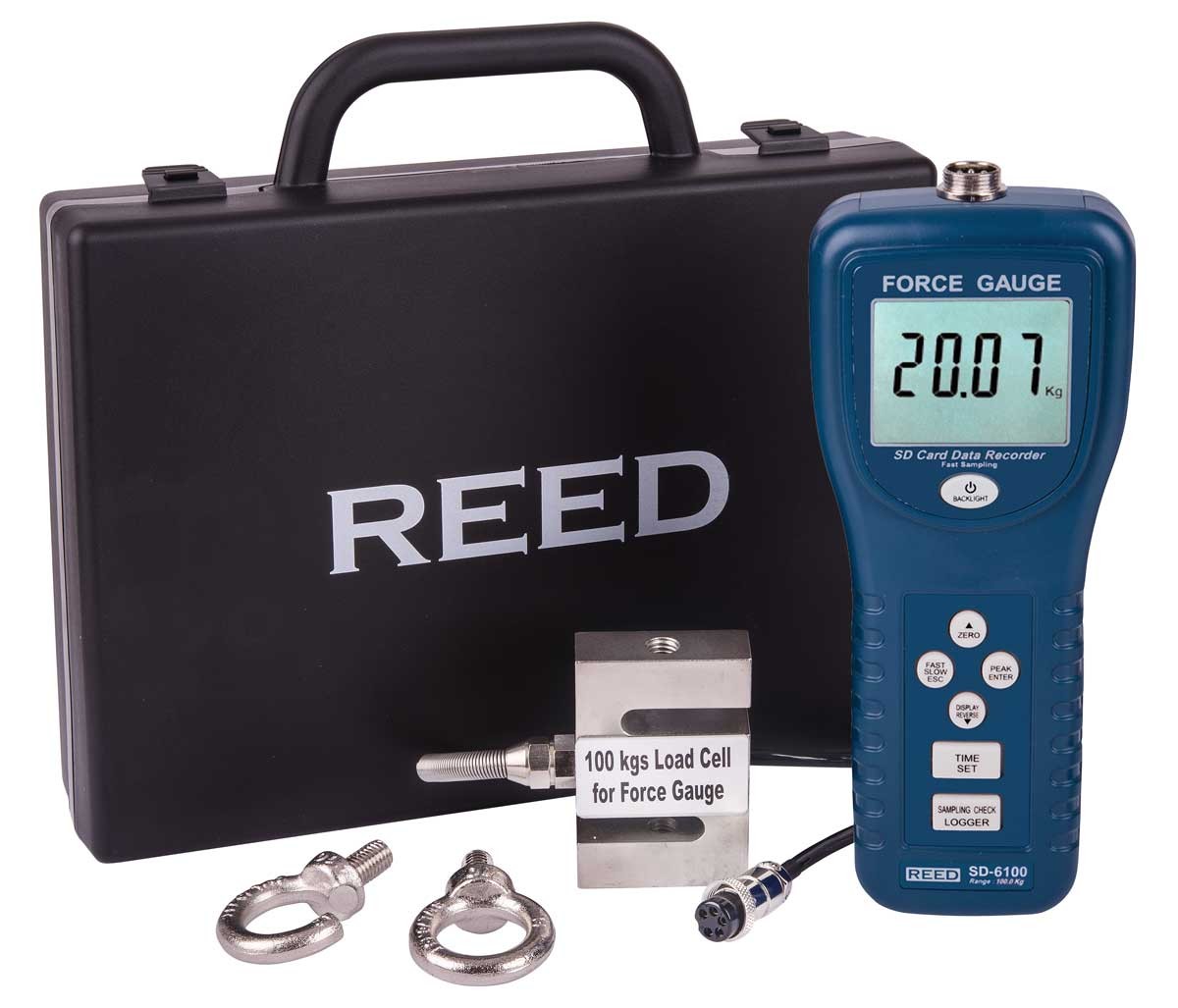

What’s included with the REED SD-6100

  • 100kg Force Gauge Datalogger
  • Load Cell Sensor with 2 Hooks and Cable
  • Hard Carrying Case
  • Batteries


  • Measures tension and compression
  • Records in Peak hold or Normal mode
  • Fast/Slow response selection
  • Full capacity tare (zero) capability
  • Force is measured in kg, lb or Newtons
  • Easy-to-read backlit display
  • The reversible display ensures legible readings regardless of the direction

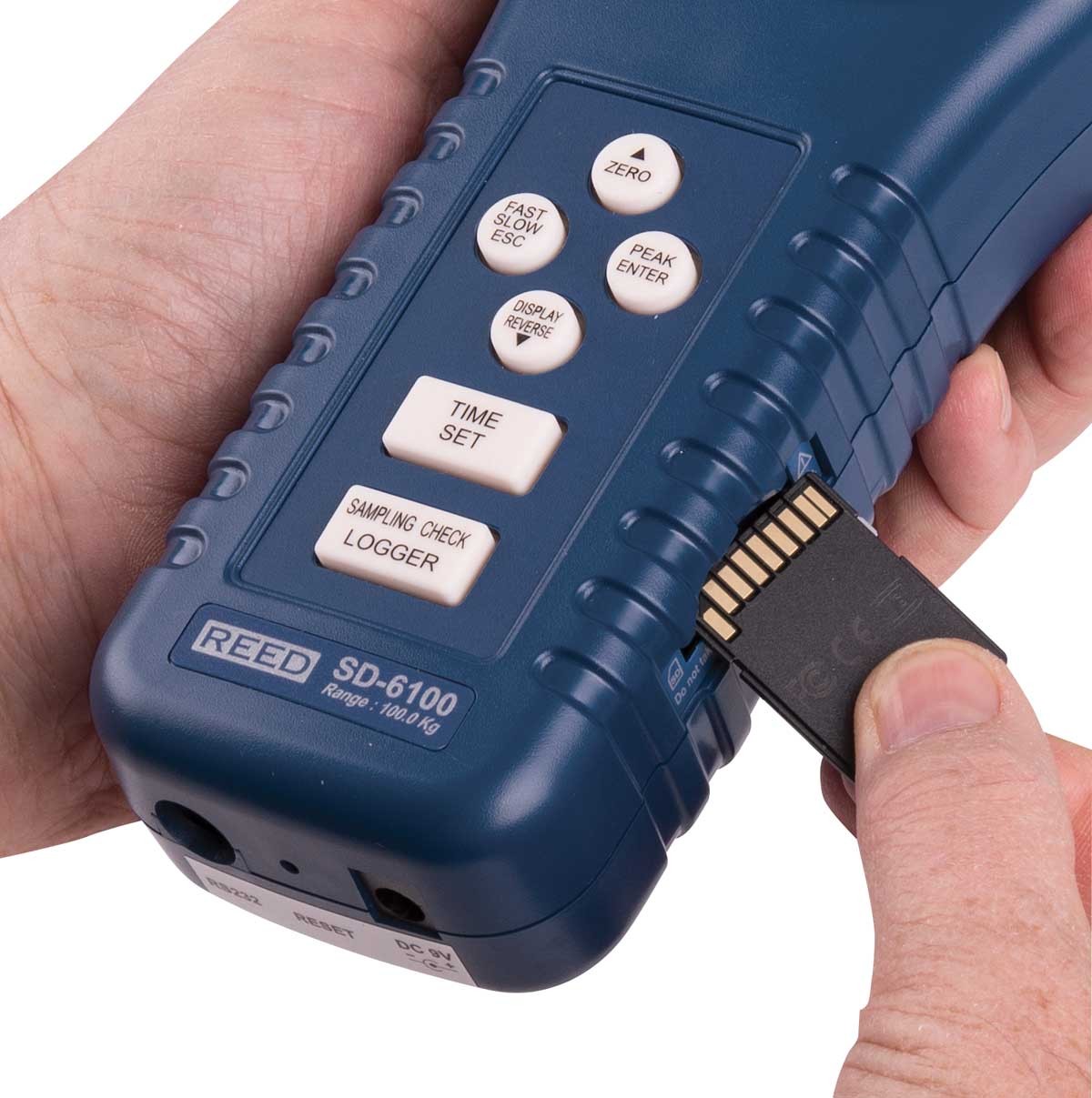

  • Real-time data logger with integral SD memory card
  • User-selectable sampling rate from 1 to 3600 seconds
  • Optional PC software features live tracking via USB connection
  • Low battery indicator and auto shut off

Ideal Applications for the REED SD-6100

  • Electronics
  • Automotive
  • Plastics
  • Lab Testing
