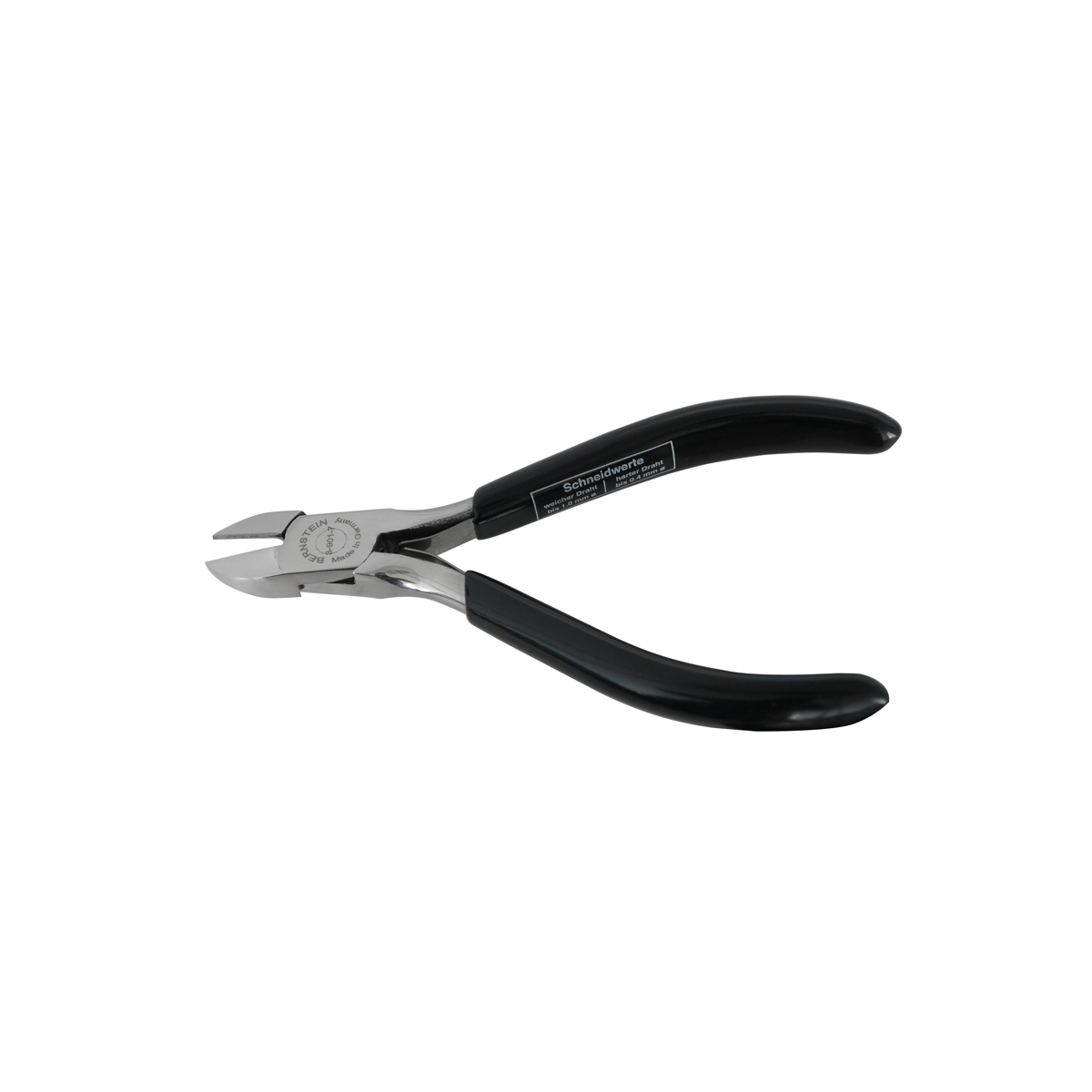

BERNSTEIN 3-901-7 ESD SIDE CUTTERS BLACKLINE SEMI FLUSH 115 MM

Description

  • Semi Flush (with side face, cut pyramid shape)
  • cutting capacity soft/medium/hard/piano Ø in mm: 1.5/1.0/0.4/0
  • head width 12 mm
  • blade length 10 mm
  • material high-quality steel (HRC 56-58)
  • surface glossy steel polished
  • handle dipped insulation ESD non-slip, dissipative 3×10^7 Ohm
  • length 115 mm
  • weight 65 g

AREA OF APPLICATION

BLACKline pliers are characterised by their slender, dip-insulated handles. The highly polished surface and the inlaid knuckle guarantee a long service life with good care. The very narrow pliers heads are ideal for working on filigree components.


TECHNICAL DESCRIPTION

The pliers of this program have been successfully tested by several test laboratories according to DIN EN 61340-5-1, 61340-2-1 as well as 61340-2-3 for work in ESD-protected areas.


GENERAL INFORMATION

Made of special tool steel, highly polished steel polished, box joint, with dissipative dipped insulation and double leaf spring.
