- content: see parts list below
- ESD handle with rotating cap dissipative 10^4 and 10^6 Ohm ergonomically shaped
- Holder made of stable steel, ESD dissipative coated
- slotted blades 1.5-2.0-2.5-3.0-3.5-4.0 mm
- ESD SMD tweezers 120mm form 7a stainless steel angle 40° dissipative
- ESD side cutters CLASSICline Miniwate 115mm
- Blades made of high quality chrome-vanadium-molybdenum steel
- manufactured according to DIN ISO
- measures 150 x 80 x 200 mm
- weight 520 g
AREA OF APPLICATION
For all work on electrostatically sensitive components. The blades are made of quality steel to ensure torsion resistance – at maximum stress. The tips are burnished for dimensional stability and to prevent chrome chipping (except socket wrench). The rotating cap is smooth-running and allows the screwdriver to be held in position despite starting pressure. Thanks to the ergonomically shaped handle, the screwdriver fits perfectly in the hand.
SCREWDRIVER: Handle made of ESD plastic (PP black) with a surface resistance of 10^4 to 10^6 Ohm. The matt chrome-plated blade is made of high-quality chrome-molybdenum steel (hardness> 55 HRC), hardened over the entire length, according to DIN ISO.
The VARIO variant also has:
SIDE CUTTER: head width 11 mm, blade length 13 mm , made of quality steel (HRC 56-58), mirror-polished, box joint construction, cutting capacity Ø wire thickness: soft 1.3 / medium 0.8 / no hard wires, ESD ergonomically handle, dissipative between 10^6 and 10^9 ohm.
TWEEZERS: length 120 mm, angle 40 ° crescent-shaped, super pointed approx. 35 mm, shape 7a, material stainless steel SA antimagnetic, surface matt polished, smooth and glare-free, ESD coating dissipative between 10^6 and 10^9 ohm.
Especially for applications in electronics BERNSTEIN ESD screwdrivers offer solutions for a wide variety of screw heads.

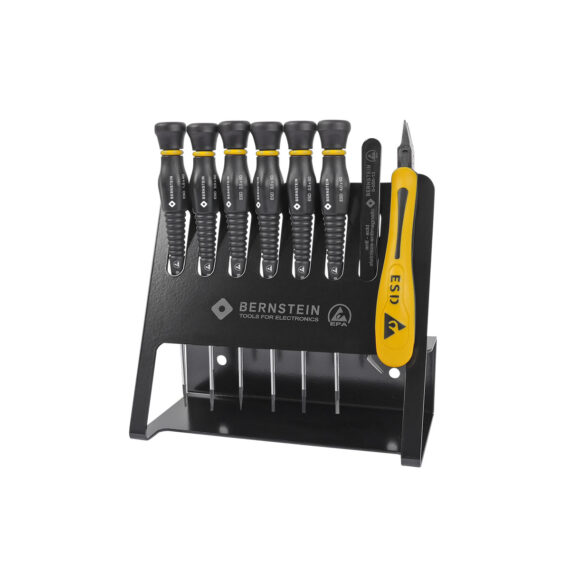

ESD screwdriver set consists of:

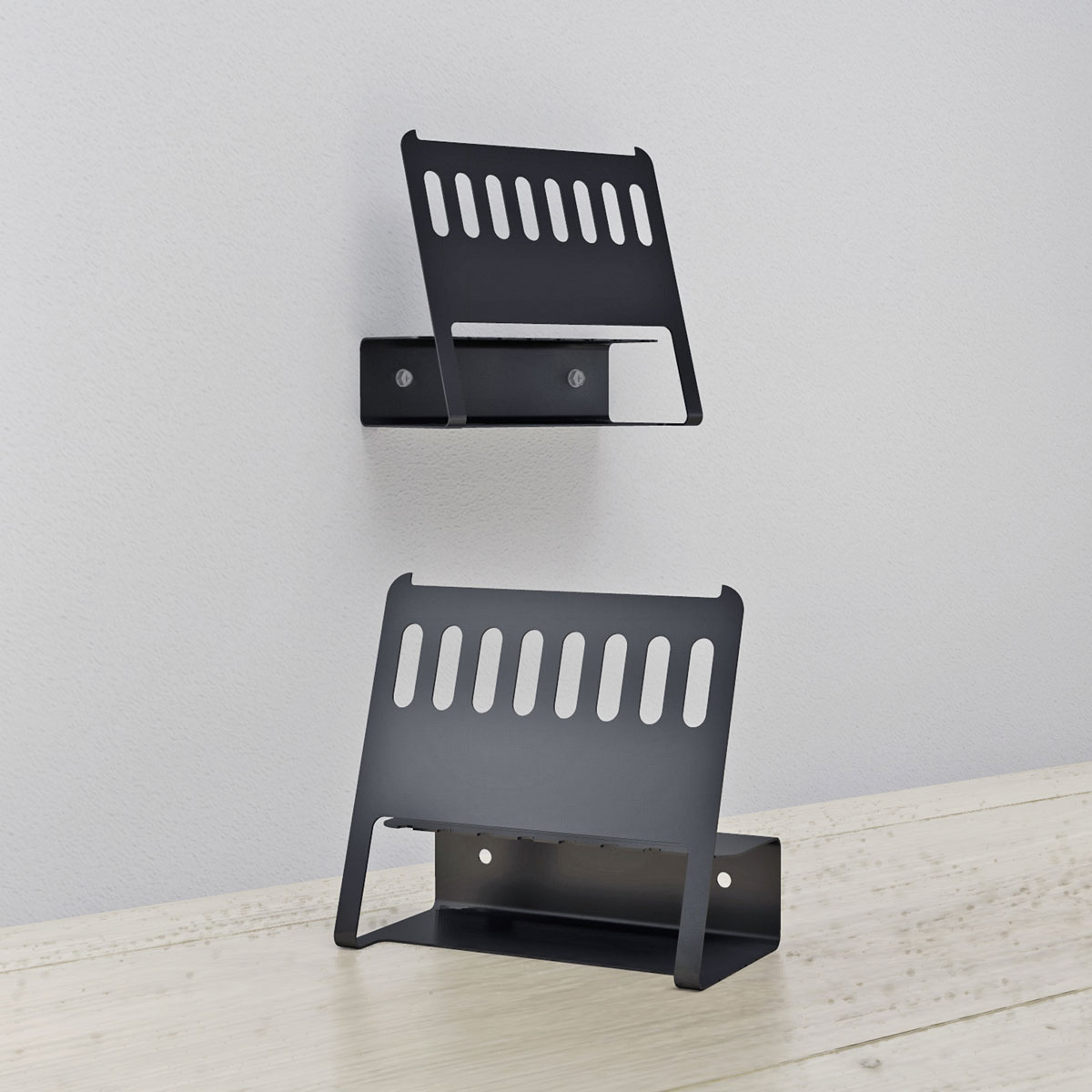

- 5-090-0 ESD tool holder VARIO 8 slots
- 4-603 ESD screwdriver slot blade 1.5×0.25x60mm
- 4-605 ESD screwdriver slot blade 2.0×0.4x60mm
- 4-606 ESD screwdriver slot blade 2.5×0.4x60mm
- 4-607 ESD screwdriver slot blade 3.0×0.5x60mm
- 4-608 ESD screwdriver slot blade 3.5×0.6x60mm
- 4-609 ESD screwdriver slot blade 4.0×0.8x60mm
- 3-604-15 ESD side cutters CLASSICline Miniwate 115mm
- 5-055-13 ESD SMD tweezers 120mm form 7a stainless steel angle 40° dissipative
