BERNSTEIN 9-205-ESD-SET1 ESD BALL JOINT VICE (CLAMPING) DISSIPATIVE + EARTH BONDING POINT + CABLE

Category: Tag:
  • High quality product 100% Made in Germany, with precision ball joint and quick clamping, infinitely adjustable
  • for clamping on, workbenches with max. 80 mm table thickness
  • jaw width 50 mm
  • clamping pressure 1470 N
  • clamping width 70 mm
  • clamping depth 38 mm
  • spare parts: jaws
    article 9-900-E50-ESD (pair)
  • cast aluminum with dissipative powder coating in shiny black, resistance between 10^7 – 10^8 ohm
  • Dimensions approx. 310 x 170 x 75 mm
  • weight 1550 g

AREA OF APPLICATION

The SPANNFIX 9-205 ESD with dissipative powder coating is suitable for workbenches or work areas with a maximum table top thickness of up to 80 mm. The small vice with ball joint can be attached quickly and easily to any workbench or table top due to its table clamp. A small pressure of the lever is sufficient and the clamped workpiece can be fixed steplessly and in any practical working position.
The SPANNFIX is a universal ball-joint-clamping-device. A third hand as a meaningfully clamp-and-hold-devices with a quick-clamp mechanism, a useful help in every workshop.


TECHNICAL DESCRIPTION

Orientation dimensions approx. 310 x 160 x 75 mm. EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone). The ESD versions have a dissipative black surface with a resistance between 10^6 – 10^9 ohm. The base can be connected to the earthing point with a 10 mm push button.
Max. Torque or action on the joint head, ball force: ball Ø 40 mm = 160 N / 17 kg / ball Ø 60 mm = 450 N / 47 kg Please note that we cannot guarantee the holding force for safety-relevant parts without knowing your specific application. Under various physical conditions the ball can behave differently. Than in our test laboratory with an optimal test environment


GENERAL INFORMATION

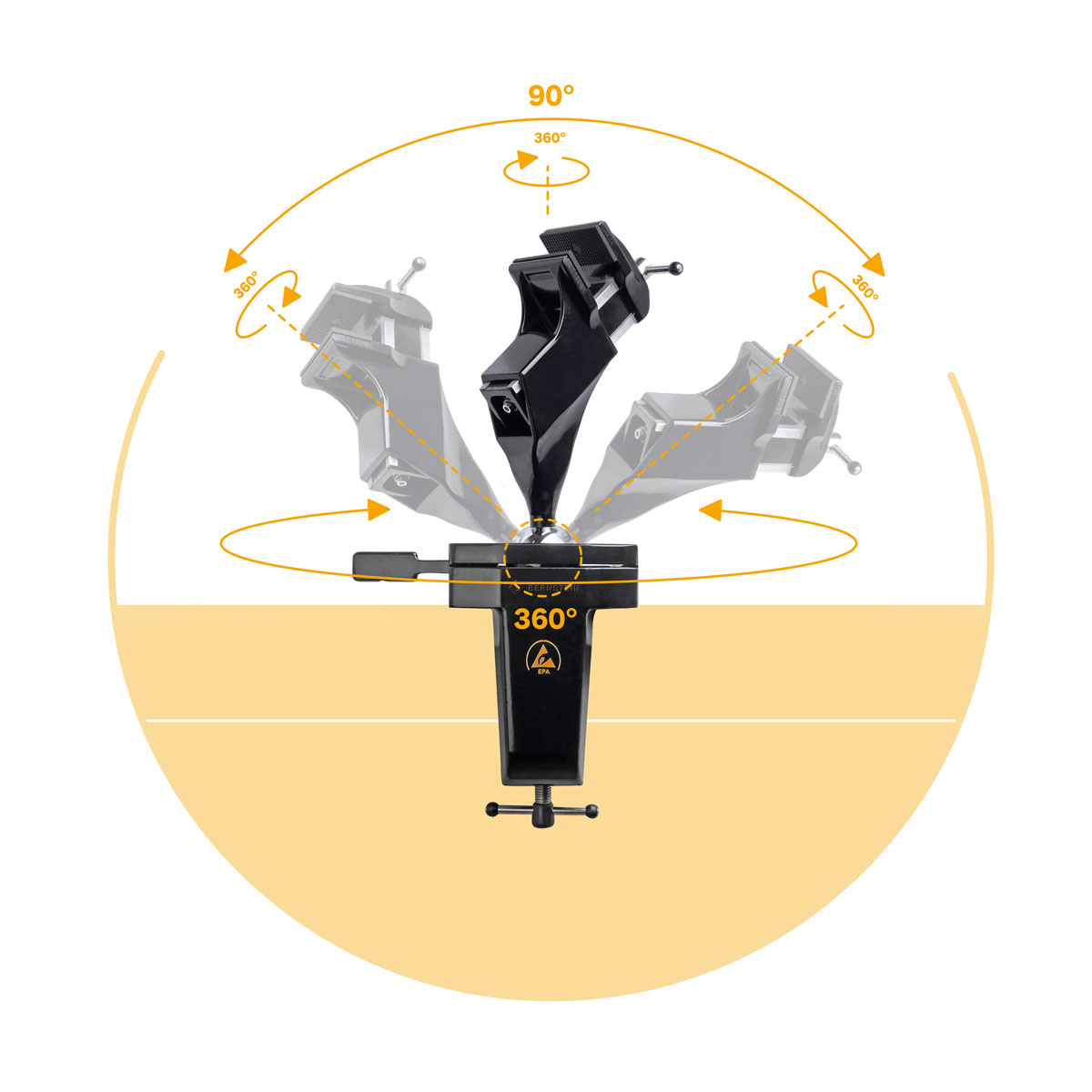

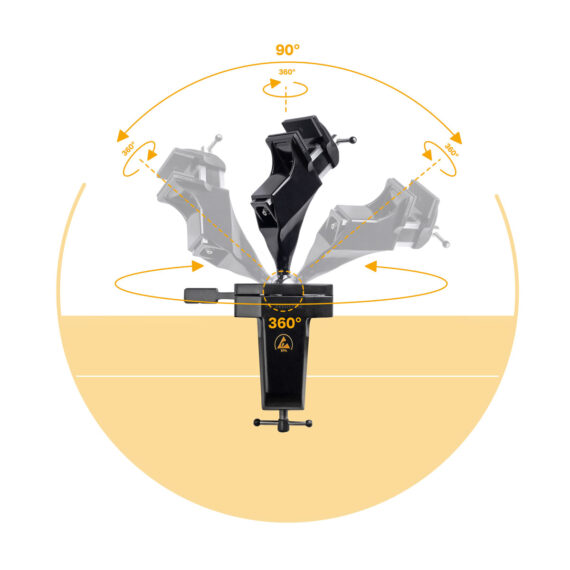

The SPANNFIX is a multifunctional vice with a flexible head and many possible applications. By using a high-quality ball joint, the head of the SPANNFIX can be tilted and fixed in any direction and offers optimum hold in any position. With the help of an adjusting screw at the lower seat of the ball, the ball mobility can be individually adjusted. The ball is held and released with a simple lever movement. Long service life is guaranteed by the high-quality, the powder-coated cast aluminium and the surface-finished steel parts!


CONTENT

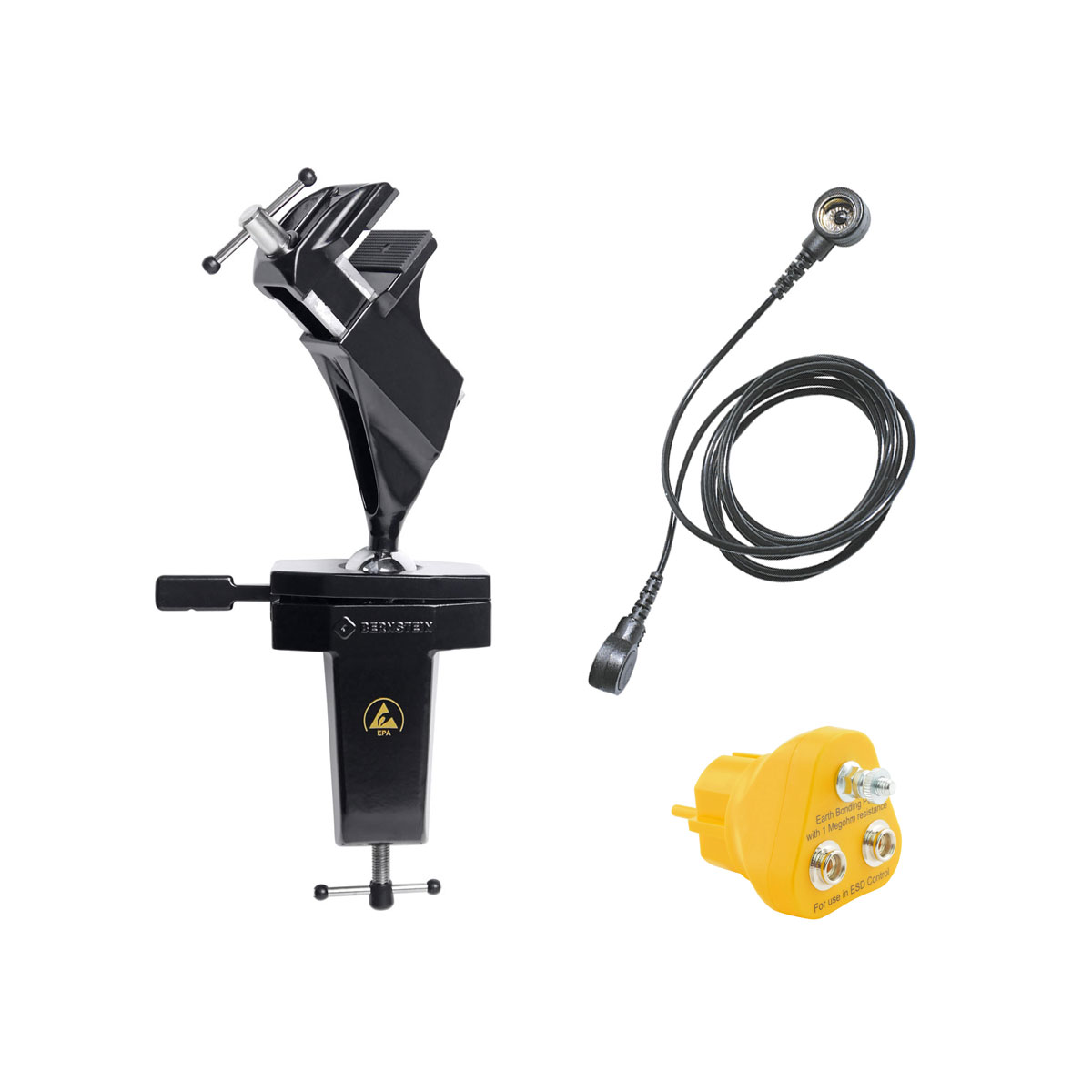

ESD handling set consists of:

  • 9-205 ESD ball joint vice SPANNFIX for clamping, dissipative
  • 9-359-2 ESD earth bonding plug 2x10mm and M5 socket
  • 9-343-1 ESD grounding cable 1 MOhm, 1500mm 2 press-studs 10/10mm
