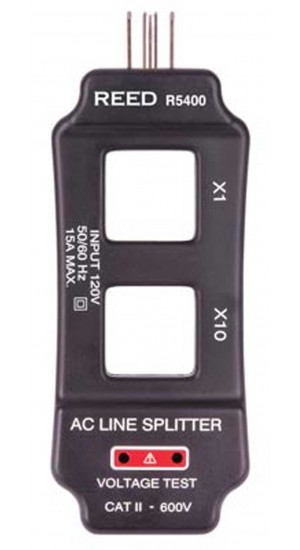

Reed R5400 Line Splitter

REED R5400 Line Splitter

Description

Model: R5400 | UPC: 800837000125

R5400 provides safe measurements of current without the need to separate conductors.

Datasheet Manual

REED R5400 Offers

This AC line splitter enables a clamp meter user to measure AC current on a 2-wire or 3-wire power cord to 15A.

What’s included with the REED R5400

  • REED R5400 Line Splitter

Features

  • Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
  • Fits clamp jaw size 0.75″ (19mm) and above
  • Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
  • Two measurement sensitivity positions (1X and 10X)
  • Voltage check function
  • Cat. II 600V safety rating

Ideal Applications for the REED R5400

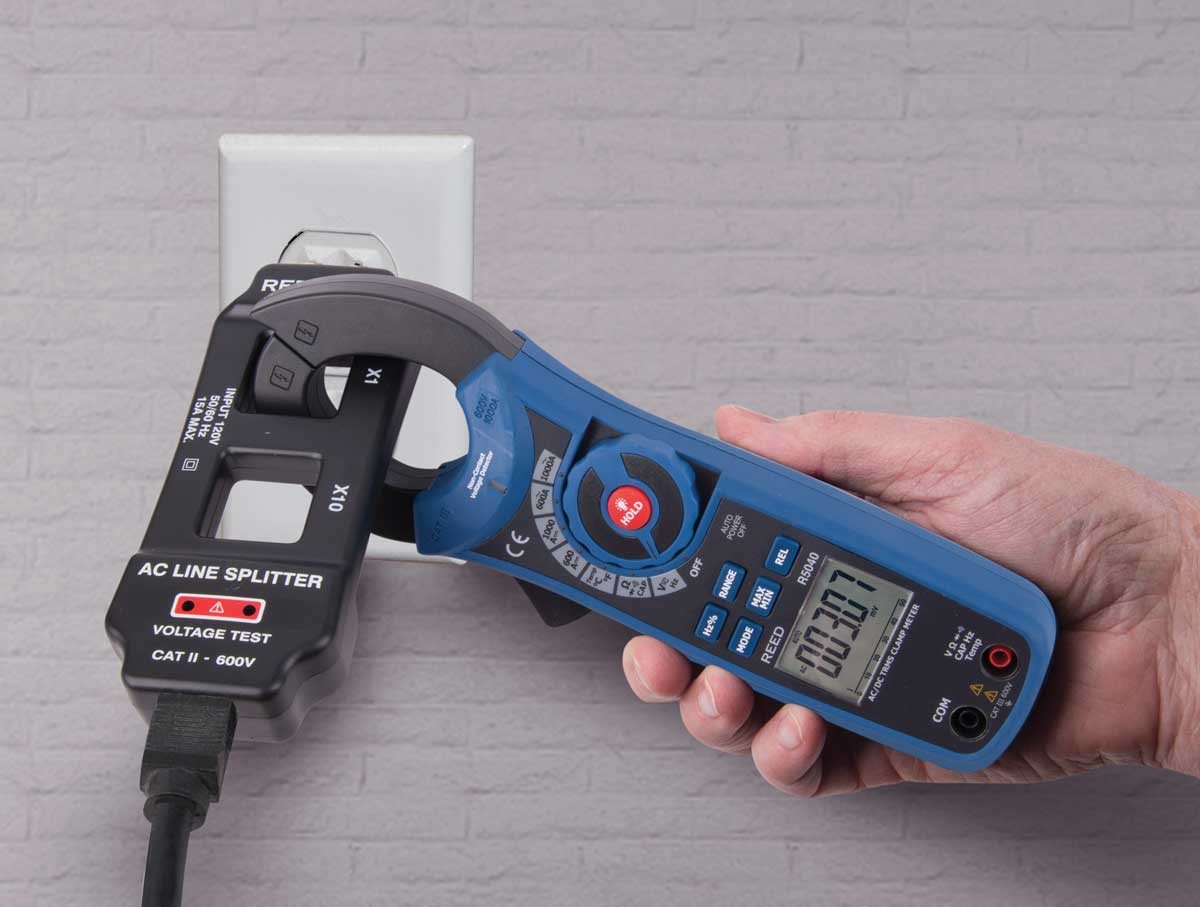

Testing current on 110V receptacle.
