Reed R5600 Insulation Tester Reed R5600 2

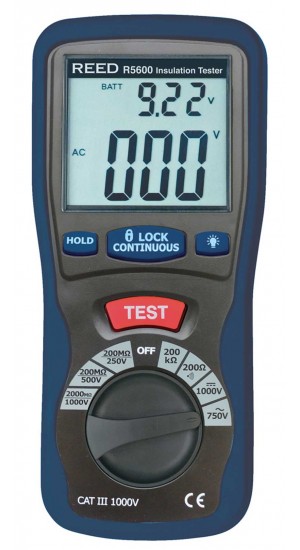

REED R5600 Insulation Tester

Description

Model: R5600 | UPC: 800837002044

Multi-function insulation tester with backlit dual display, double molded plastic housing, and lock function for hands-free operation.

Datasheet Manual

REED R5600 Offers

This insulation tester is capable of measuring 250V, 500V, or 1000V test voltages and insulation resistance up to 2000MΩ. The R5600 features an easy-to-read backlit dual display, durable double molded plastic housing, and lock function with a hanging strap for hands-free operation in the field.

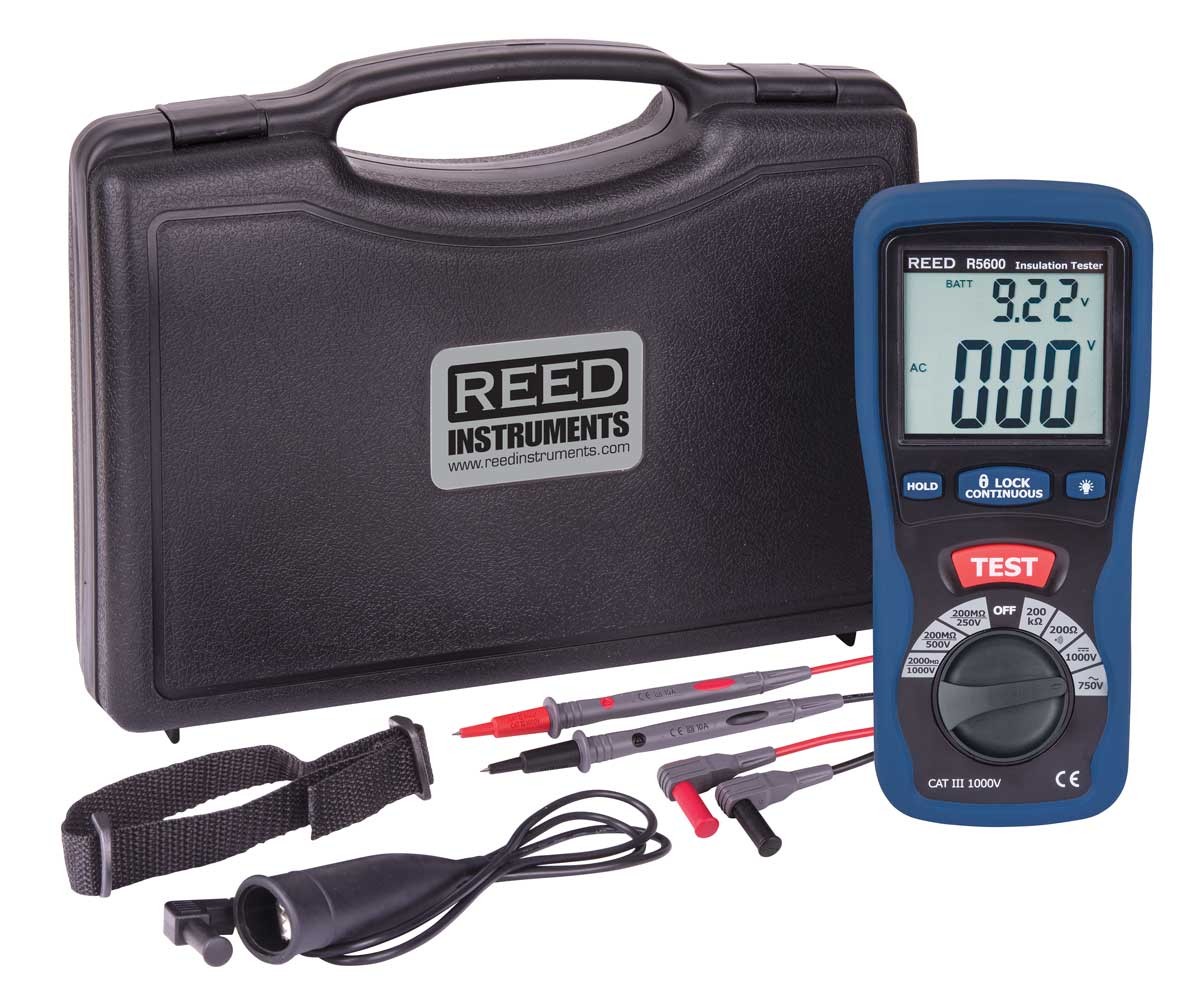

What’s included with the REED R5600

  • Insulation Tester
  • Test Leads
  • Alligator Clip
  • Hanging Strap
  • Hard Carrying Case
  • Batteries

Features

  • Backlit dual displays insulation resistance and test voltage simultaneously
  • 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
  • Lock function and hanging strap for hands-free operation
  • Lo Ω function for testing connections
  • Data hold function
  • Double molded plastic housing for added protection
  • Low battery indicator and auto shut off
  • Cat. III, 1000V safety rating

Ideal Applications for the REED R5600

  • Power Tools
  • Appliances
  • Motors
  • Cables
