Model: R8500 | UPC: 800837002822

9mm camera diameter and 2.5″ color TFT LCD monitor. Saves high-resolution images and records video.

Datasheet Manual

REED R8500 Offers

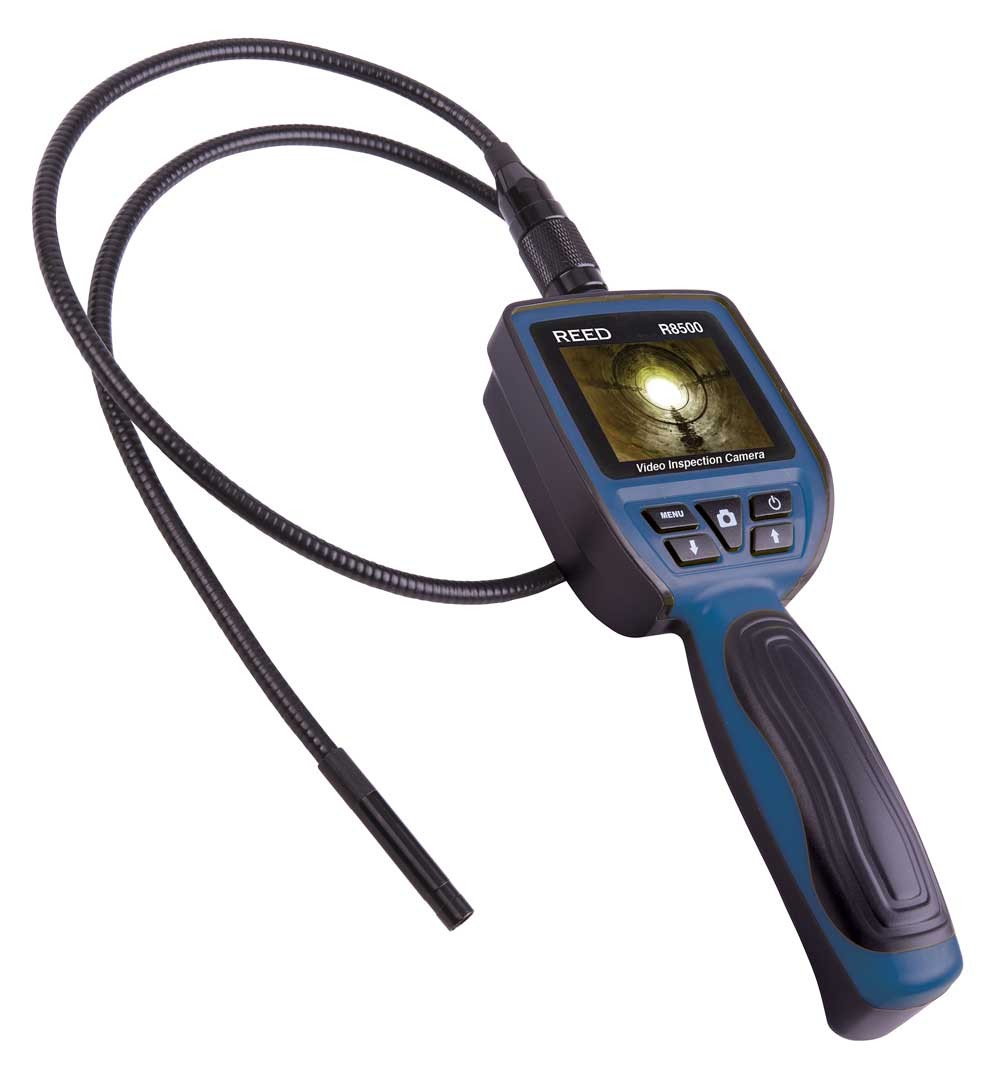

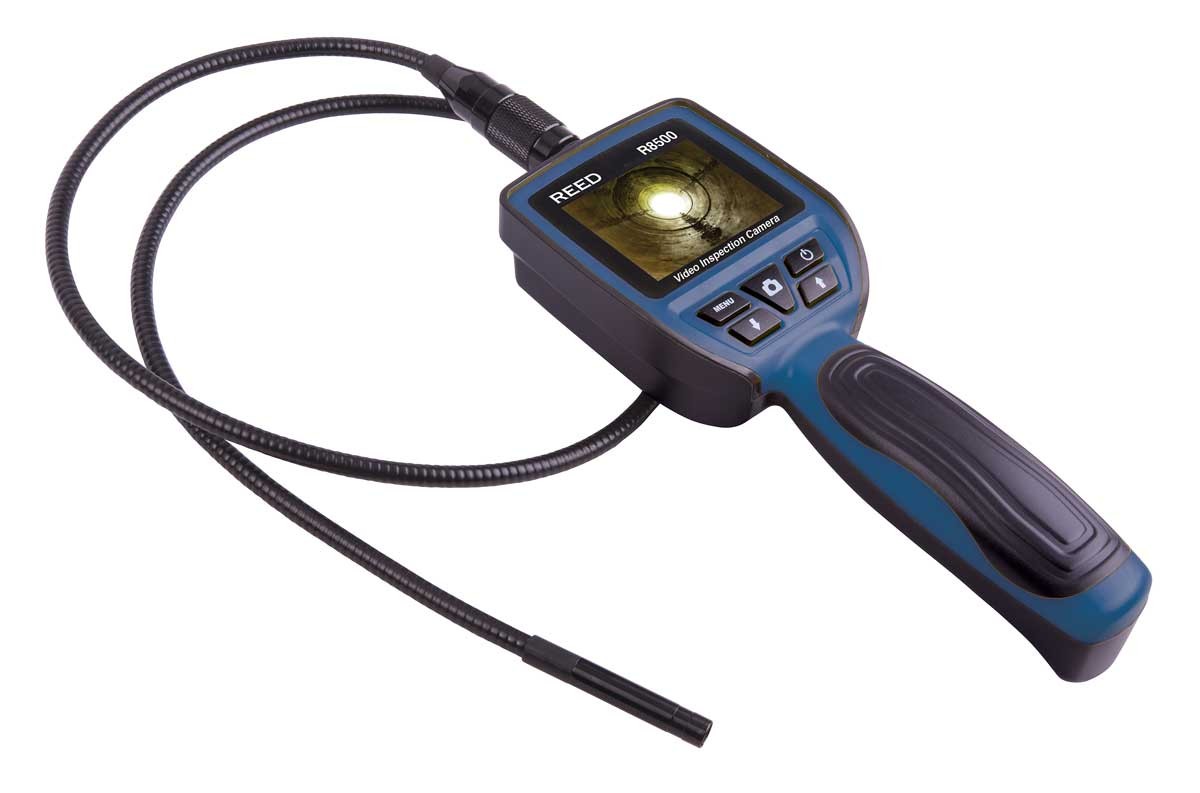

This high-resolution video inspection camera features a 39″ (1m) gooseneck cable with a 9mm camera. The R8500 is capable of saving images and recording video on an external memory card (sold separately). The R8500 includes a camera-mountable magnet, hook and mirror to assist with specific applications.

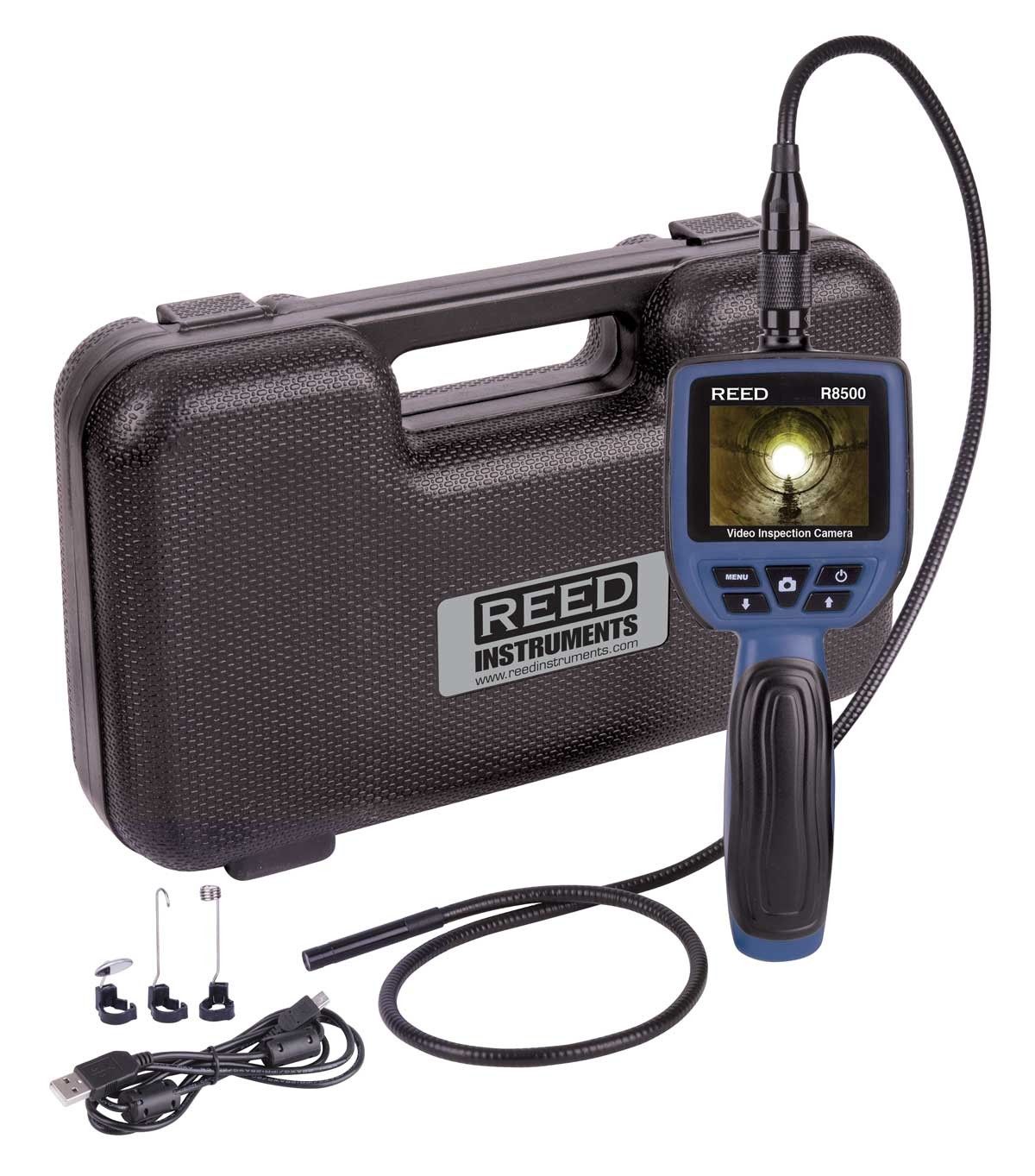

What’s included with the REED R8500

  • Video Borescope
  • 9mm Camera Head
  • Magnet, Hook and Mirror Attachments
  • Batteries
  • USB Cable
  • Hard Carrying Case

Features

  • Camera and video functions save high-resolution images and video
  • Comfortable pistol-grip design
  • High resolution 2.5″ color LCD monitor

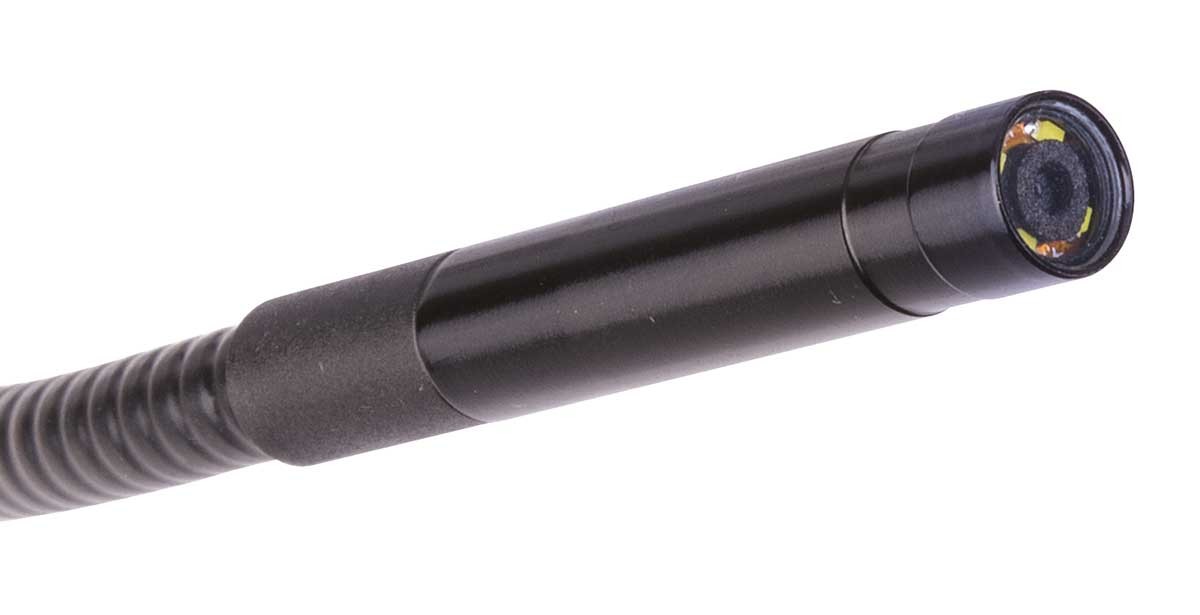

  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off

Ideal Applications for the REED R8500

  • Building and home inspection
  • Pest control
  • HVAC/R and refrigeration
  • Visual inspections of aircraft engines
  • Steam turbines
  • Automotive and truck engines
  • Manufacturing of machined or cast parts
  • Inspection of critical interior surfaces for burrs, surface finish or complete through-holes
