Reed Instruments Sd 4214 Thermo Anemometer Data Logger Reed Sd 4214 5

REED SD-4214 ANEMOMETRE / TERMOMETRE

Description

Model: SD-4214 | UPC: 800837001870

Real time data logger with integrated SD memory card (optional) measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

Manual Datasheet

REED SD-4214 Offers

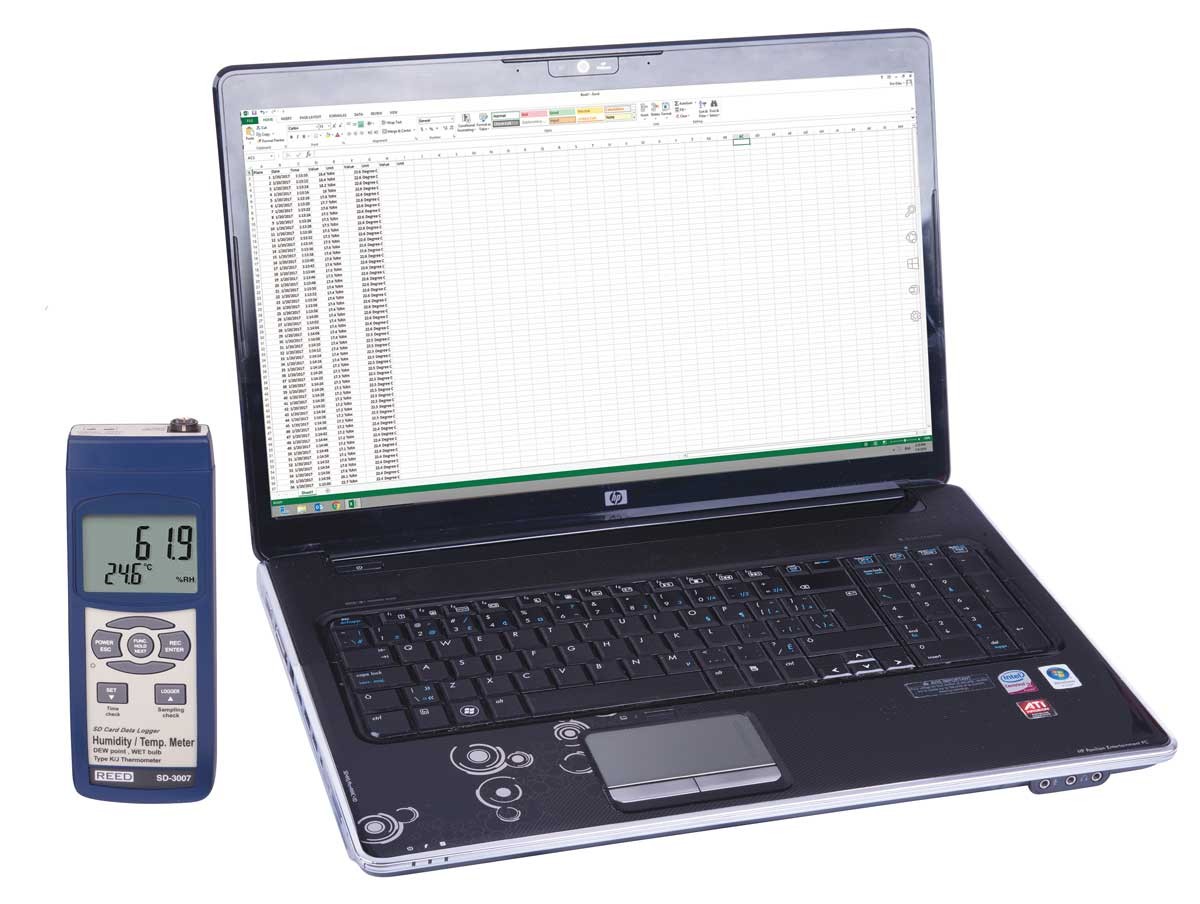

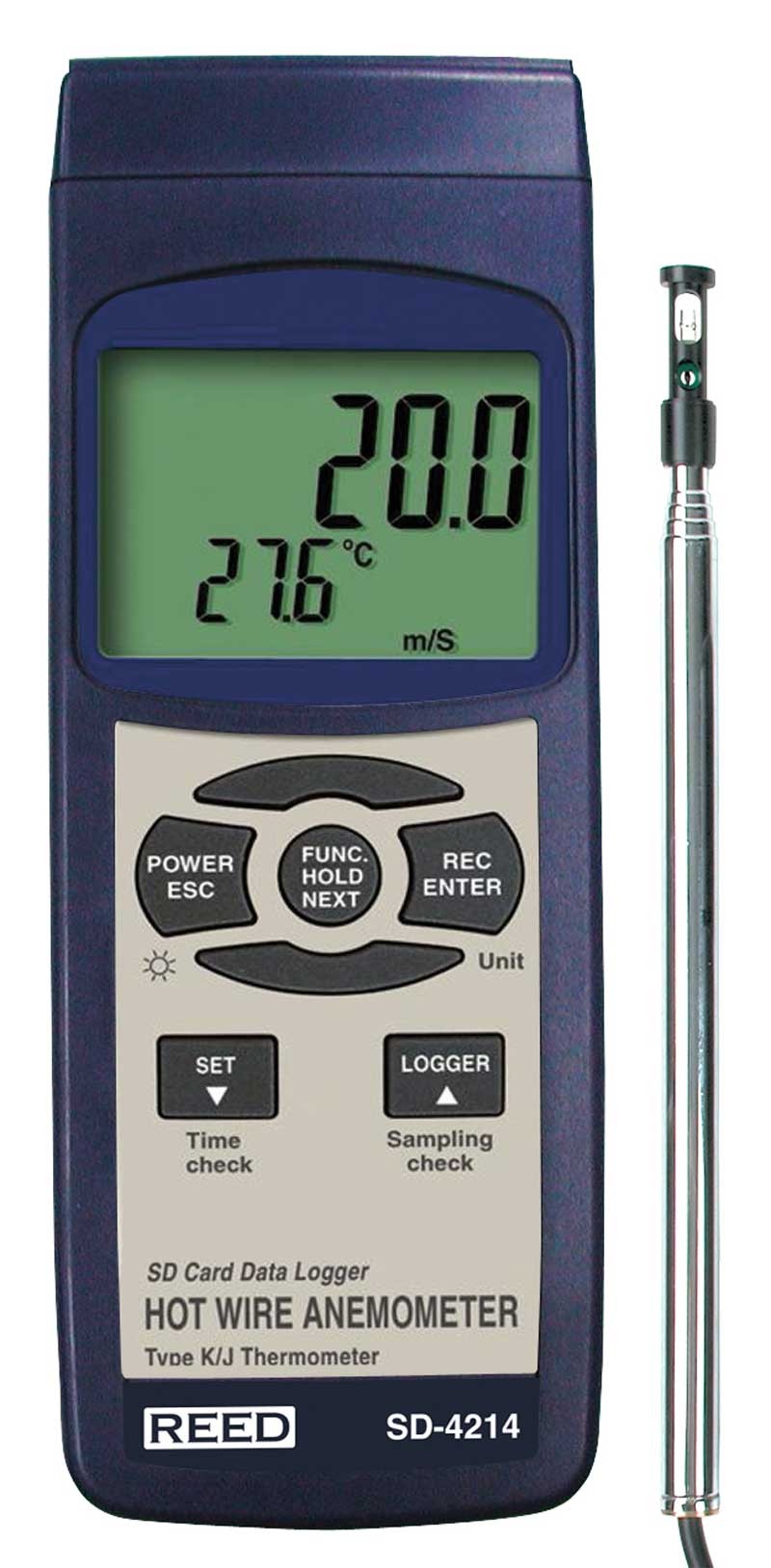

This SD series datalogging thermo-anemometer measures air velocity, air temperature and has a built-in contact thermometer. The SD-4214 features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings

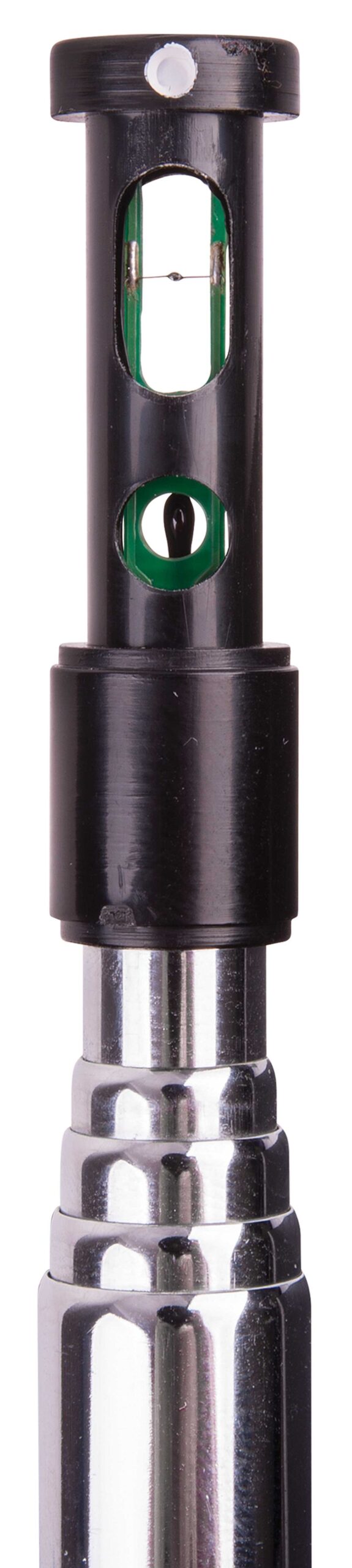

  • Hot wire probe for precise low air velocity measurements

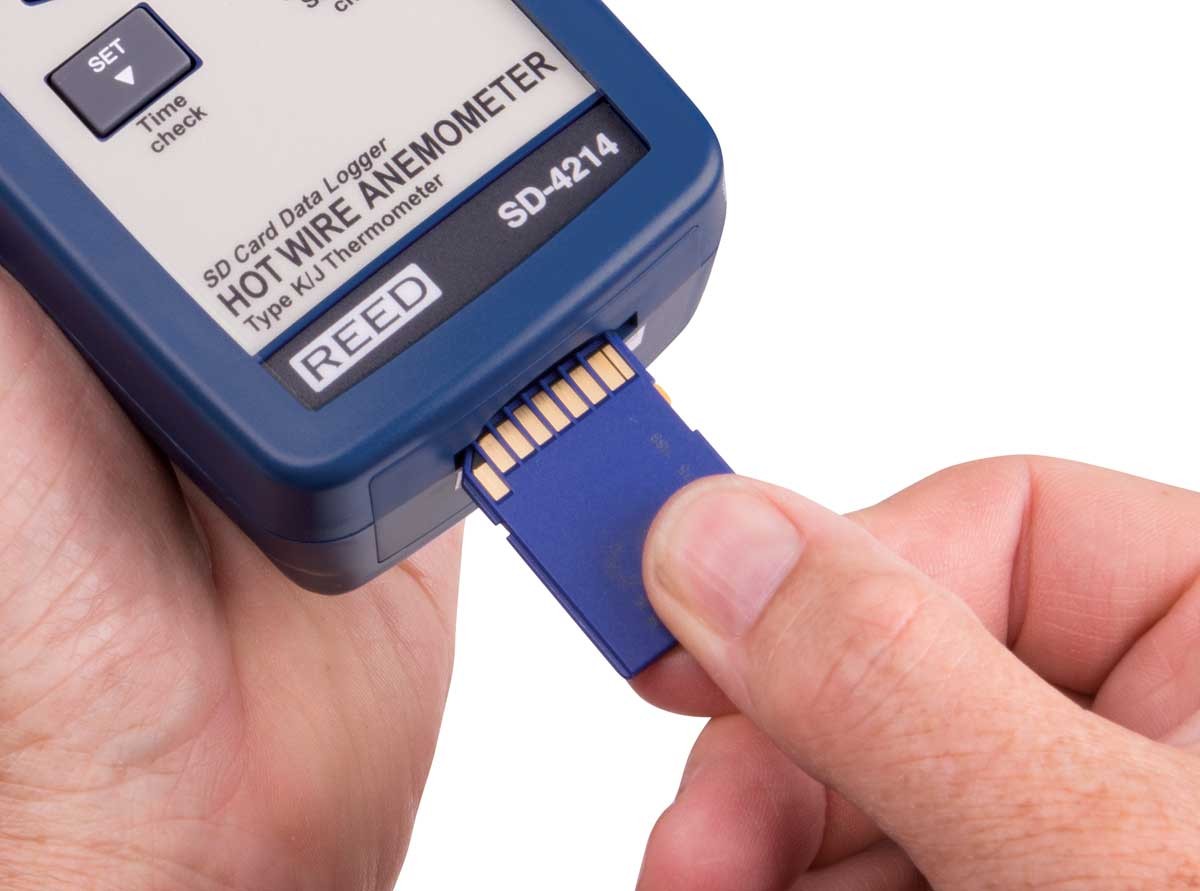

  • Real-time data logger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

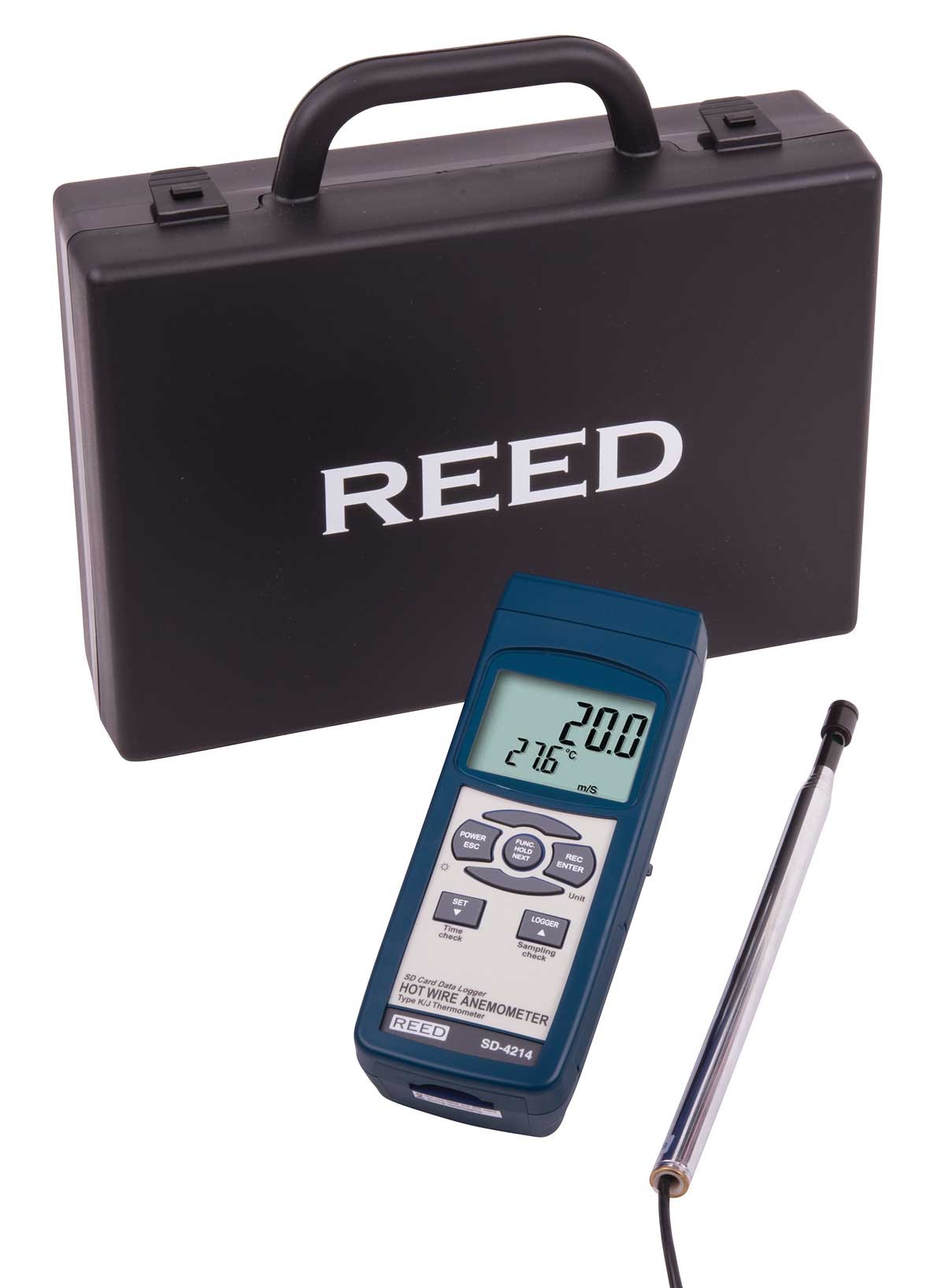

What’s included with the REED SD-4214

  • Thermo-Anemometer Datalogger
  • Telescope Hot Wire Probe
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED SD-4214

  • HVAC/R and Refrigeration Servicing
  • Detecting Filter Blockage
  • Condensers and Chillers
