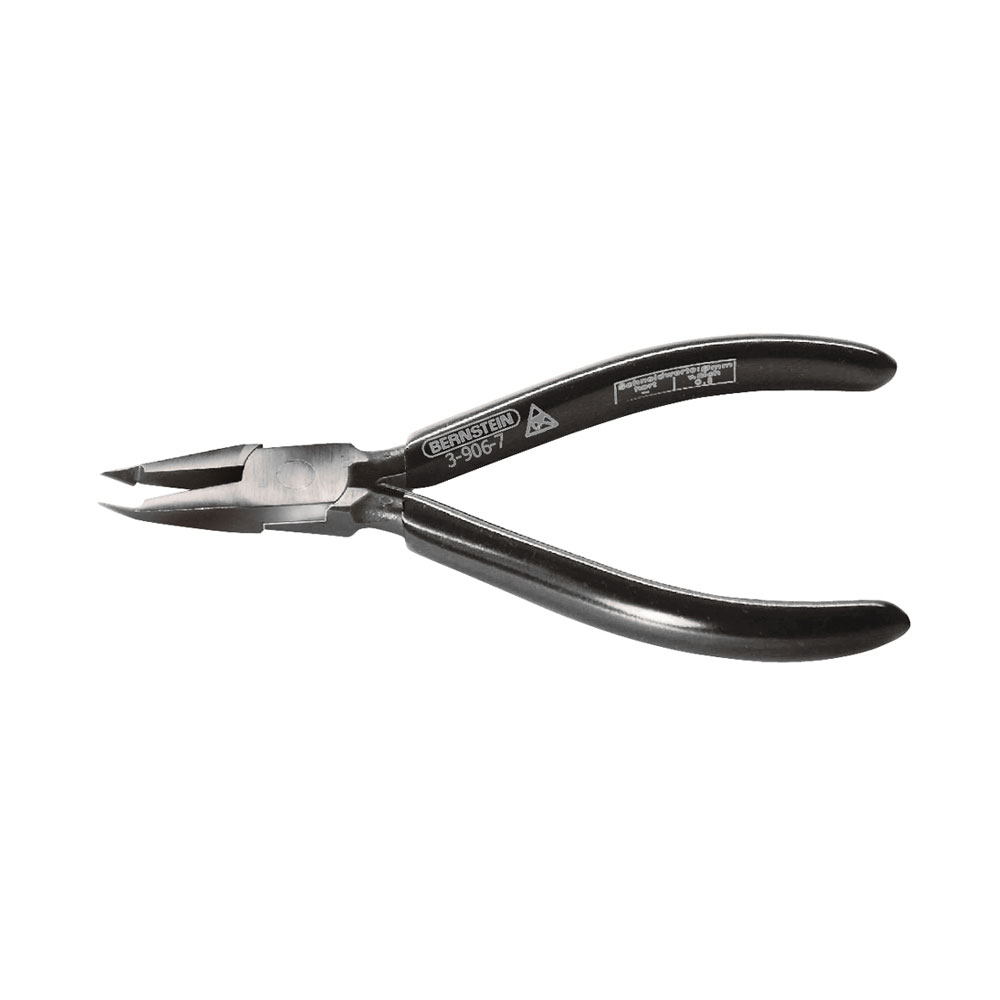

BERNSTEIN 3-906-7 ESD END CUTTERS BLACKLINE FLUSH 125 MM

Description

  • Flush (mini side face cut with small top)
  • cutting capacity soft/medium/hard/piano Ø in mm: 0.8/0.6/0/0
  • head width 13 mm
  • oblique cutting with 7 mm blades, jaw length 25 mm
  • material high-quality steel (HRC 56-58)
  • surface glossy steel polished
  • handle dipped insulation ESD non-slip, dissipative 3×10^7 Ohm
  • length 125 mm
  • weight 75 g

AREA OF APPLICATION

BLACKline pliers are characterised by their slender, dip-insulated handles. The highly polished surface and the inlaid knuckle guarantee a long service life with good care. The very narrow pliers heads are ideal for working on filigree components.


TECHNICAL DESCRIPTION

For working in hard-to-reach places, for flush cutting. The pliers of this program have been successfully tested by several test laboratories according to DIN EN 61340-5-1, 61340-2-1 as well as 61340-2-3 for work in ESD-protected areas.


GENERAL INFORMATION

Made of special tool steel, highly polished steel polished, box joint, with dissipative dipped insulation and double leaf spring.
