• 3 bit bars equipped with 36 special bits and 1 bit bar with 6 nut setter
  • precision repair kit for smartphones (I-Phone, Samsung, HTC) tablets and PCs.
  • 4 bit bars 4mm (5/32 inch) hex bits
  • blade length 22 mm
  • blade Ø 8 mm
  • including ESD handle and ESD tweezers (dissipative 10^6 to 10^9 ohm)
  • including opening tool + screen opener + bit extension
  • quality steel sandblasted and nickel-plated 52-54 HRC
  • measures 175 x 160 x 45 mm
  • weight 420 g

AREA OF APPLICATION

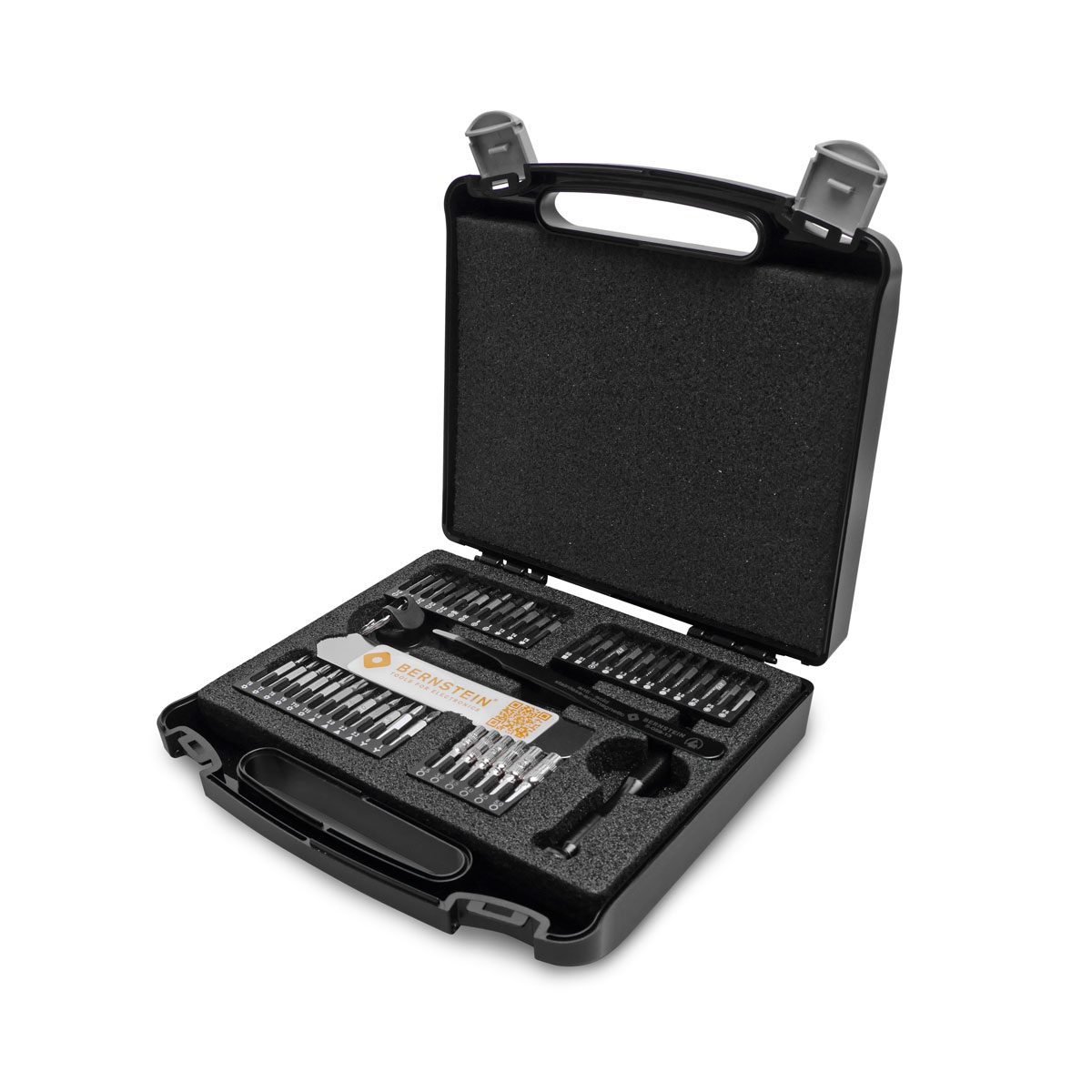

47-piece precision repair set consisting of a screnn opener and an extremely narrow and filigree opening tool, a dissipative ESD tweezers, a bit extension, the 42-bit set of bits with dissipative aluminum ESD bit handle with rotating cap.


TECHNICAL DESCRIPTION

In conjunction with the ESD handle suitable for all work on electrostatically sensitive components. Precision repair kit for Smartphones (I-Phone, Samsung, HTC). 3 bit bars equipped with 36 special security bits with C4 holder, 1 bit bar with 6 nut setter with C4 holder, quality steel sandblasted and nickel-plated, hardness 52-54 HRC, material plastic bar PP. Handle with slim and ergonomically shaped, surface resistance 10^6 – 10^9 ohm, Standards: IEC 61340-5-1. The rotatable centering head guarantees precision.


GENERAL INFORMATION

Especially for applications in electronics BERNSTEIN ESD screwdrivers offer solutions for a wide variety of screw heads.


CONTENT

ESD screwdriver set consists of:

  • 6-340-1 ESD bit holder dissipative for 4mm (5/32 inch) hex bits
  • 6-340-2 bit extension for 4mm (5/32 inch) hex bits
  • 6-340-3 ESD screwdriver bit set 42 pcs 4 bit bars 4mm (5/32 inch) hex bits
  • 2-111 LCD suction cup with ring
  • 2-124 opening tool BERNSTEIN metal opener flat
  • 5-059-13 ESD SMD tweezers 120mm form 2a stainless steel dissipative
