Model: R2020 | UPC: 800837001009

Built-in camera capable of taking pictures and recording videos. Easily review saved data on the 2.2″ color TFT LCD or transfer information to a computer with the included USB cable (no software required).

Manual Datasheet

REED R2020 Offers

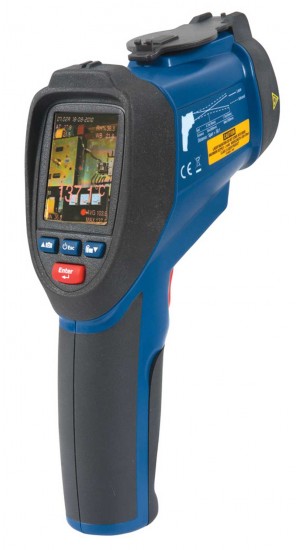

This Video Infrared Thermometer combines the accuracy and convenience of a traditional infrared thermometer with the visual advantage of a digital camera. The R2020 is capable of measuring high temperatures up to 3992°F (2200°C) and includes a number of features including ambient temperature, humidity, dew point, and wet bulb temperature measurements.

This instrument can also be mounted to a tripod and set up to continuously monitor an application while graphing live results on-screen.

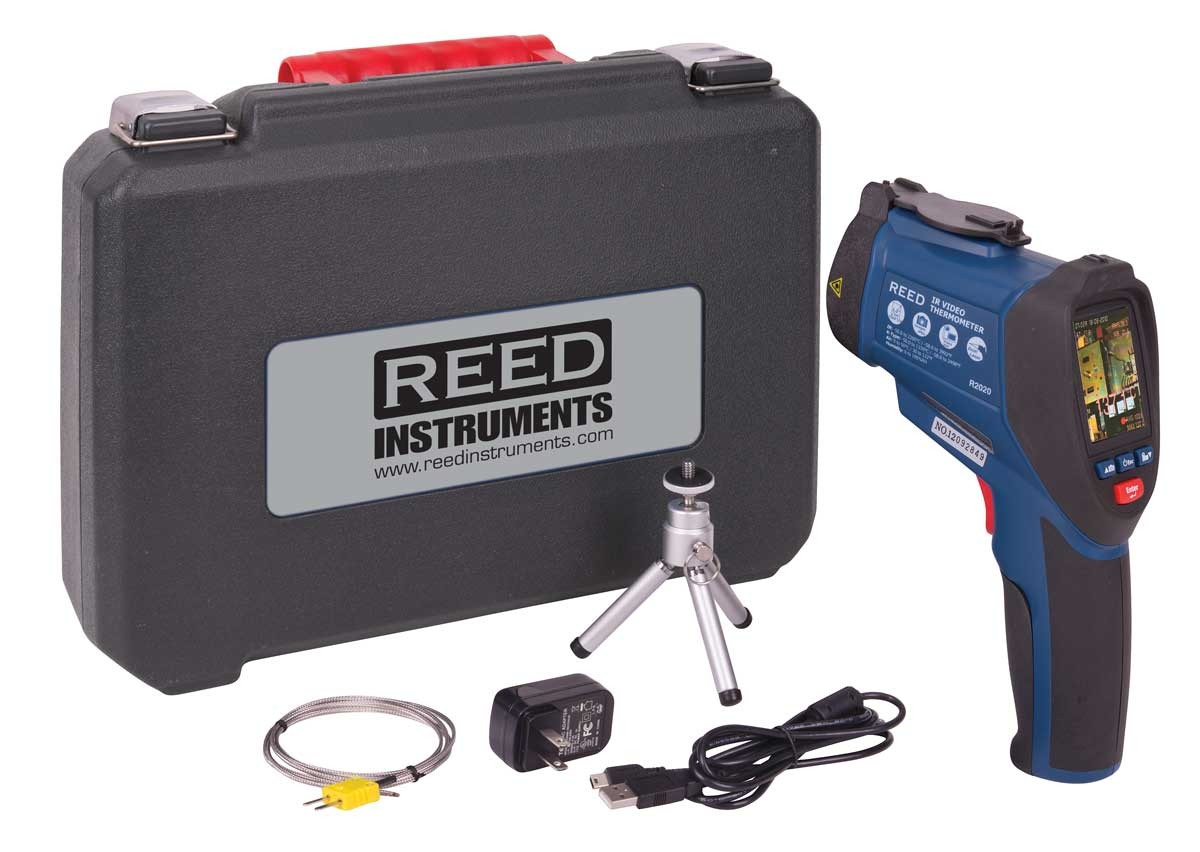

What’s included with the REED R2020

  • Video Infrared Thermometer
  • Type K Thermocouple Probe
  • AC Adapter
  • USB Adapter
  • Mini-Tripod
  • Li-ion Rechargeable Battery
  • Hard Carrying Case


  • Dual lasers assist with target area identification
  • 50:1 distance to spot size ratio
  • Take photos and record video with a built-in camera
  • Datalogging capabilities include on-screen graphing with time and date stamp
  • Digitally adjustable emissivity
  • Type K thermocouple input for contact measurement
  • Ambient air temperature, humidity, dew point, and wet bulb temperature measurement
  • Max, min, avg and differential readings
  • High and low alarms
  • Trigger lock feature for continuous monitoring
  • Export data to PC with included USB cable (no software required)

Ideal Applications for the REED R2020

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC/R energy audits to determine leaks, infiltration
