Model: R2320 | UPC: 800837004444

The precise infrared sensor allows for more accurate and repeatable measurements to meet the needs of industrial, electrical, and HVAC/R professionals.

Datasheet Manual

REED R2320 Offers

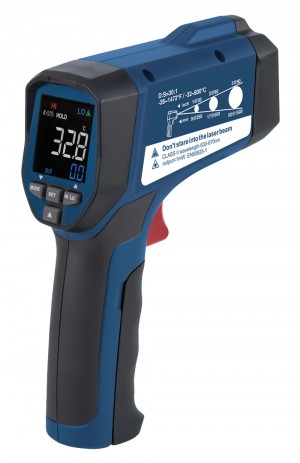

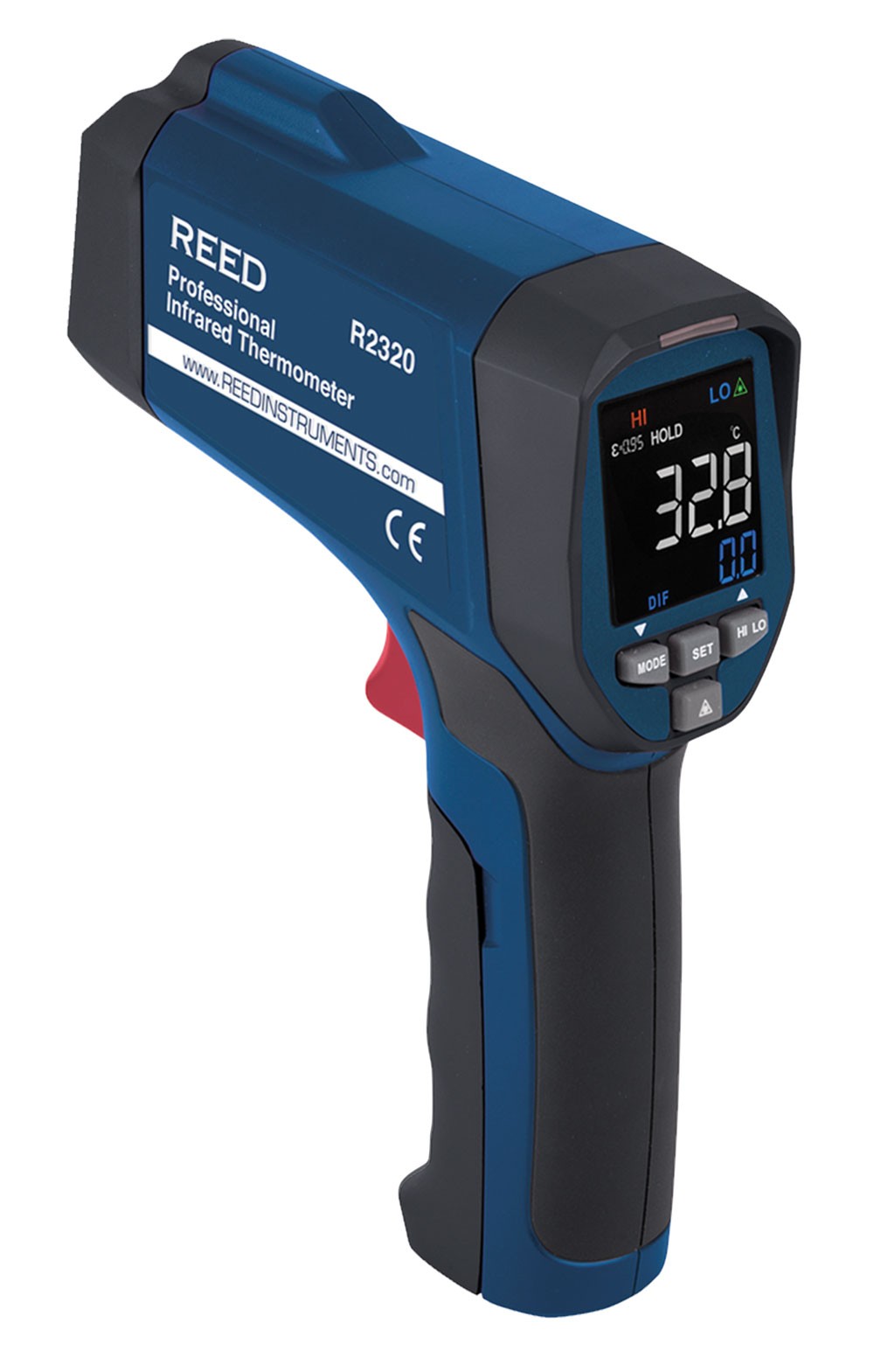

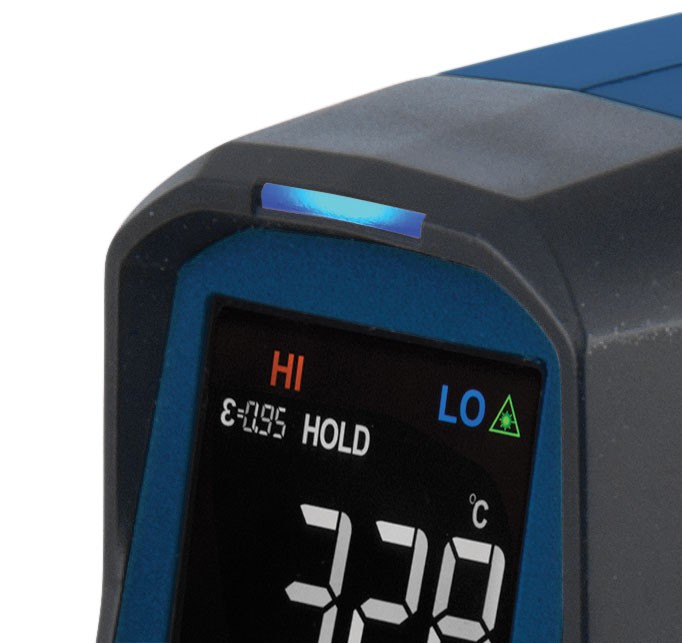

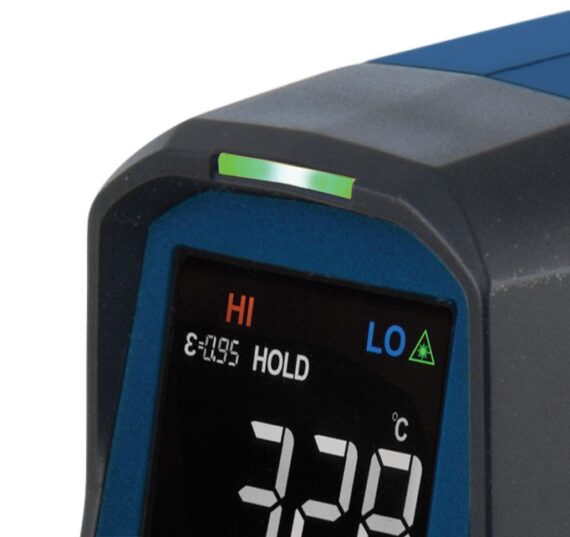

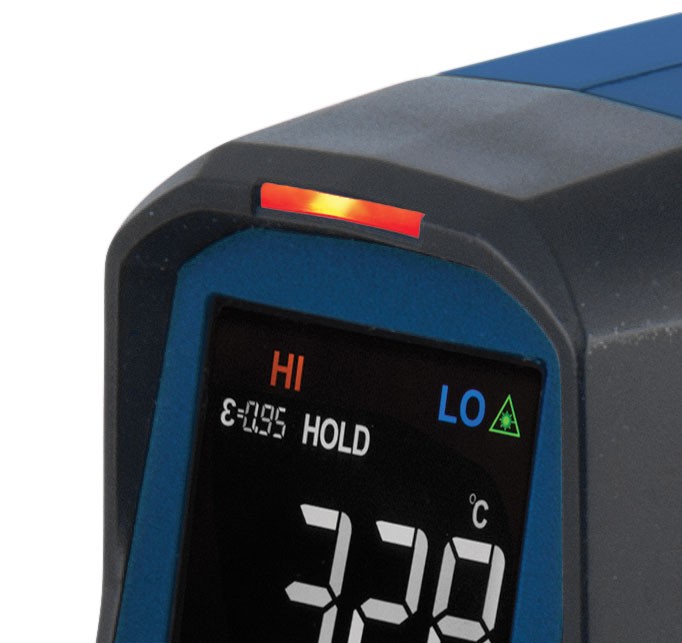

This infrared thermometer features a 30:1 distance to spot ratio and is capable of measuring temperatures up to 1472°F (800°C). The R2320 has the ability to track maximum, minimum, average, and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).

What’s included with the REED R2320

  • Infrared Thermometer
  • Carrying Case
  • Battery


  • Built-in laser pointer identifies target area
  • User-selectable °F or °C

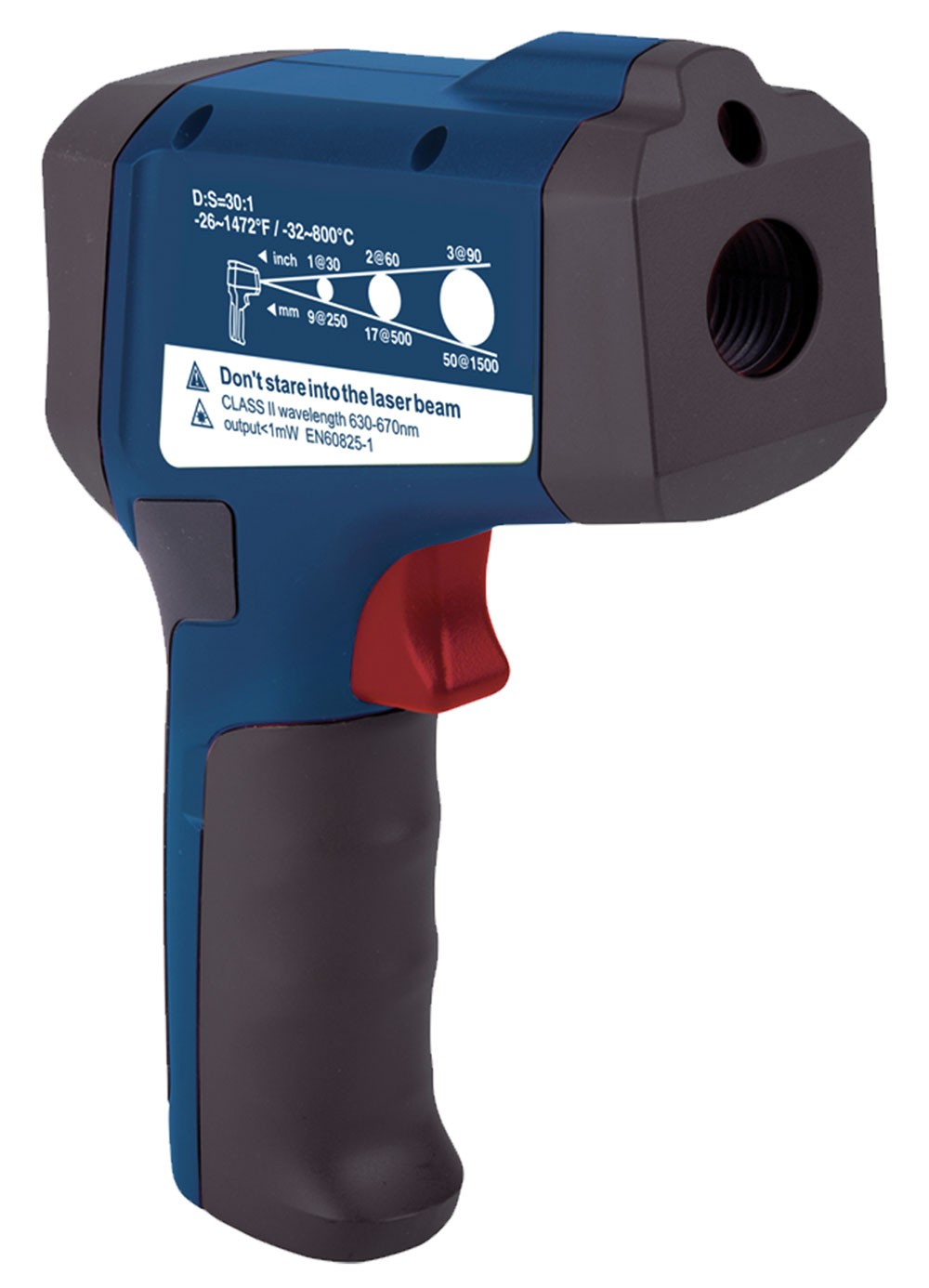

  • 30:1 Distance to Spot size ratio
  • Bright color display (EBTN)
  • Digitally adjustable emissivity
  • Max, Min, Average and Differential readings
  • Audible (beep) and visual (tri-color LED) user-adjustable alarms
  • Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
  • Trigger lock for continuous monitoring
  • Low battery indication and auto shut off

Ideal Applications for the REED R2320

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC/R energy audits
