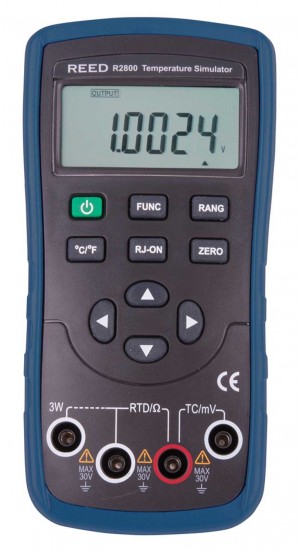

REED R2800 Temperature Simulator

Description

Model: R2800 | UPC: 800837001139

This Temperature Simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 7 RTDs. The R2800 features internal cold junction compensation, basic accuracy of 0.05%, and an easy-to-read LCD display.

Datasheet Manual

REED R2800 Offers

This temperature simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 7 RTDs. The R2800 features internal cold junction compensation, basic accuracy of 0.05%, and an easy-to-read LCD display.

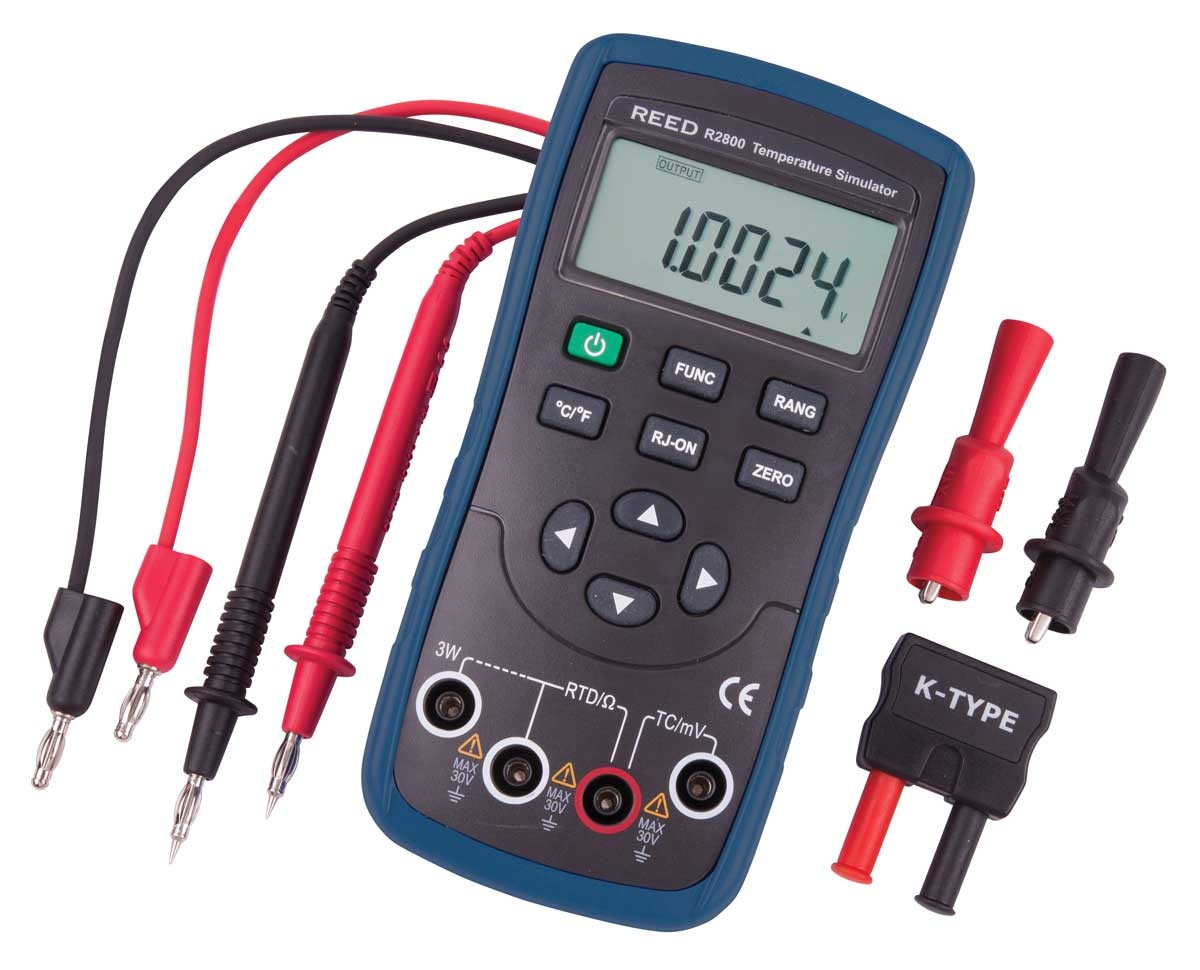

What’s included with the REED R2800

  • Temperature simulator
  • Test leads
  • Alligator clips
  • Thermocouple adapter
  • Protective holster
  • 2 x “AA” Batteries

Features

  • Source 8 thermocouple types, including R, S, B, E, K, J, T, N; and 7 RTD types, including Pt 10 (385), Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu10, Cu50; plus volts and ohms
  • Basic accuracy of 0.05%
  • Internal cold junction compensation
  • Easy-to-read 6-digit LCD display
  • Zero adjustment button
  • User-selectable unit of measure (°F/°C)
  • Low battery indicator and auto shut off

Ideal Applications for the REED R2800

This temperature simulator can be used to simulate temperature for the verification and calibration of temperature instruments including thermocouple and RTD thermometers.
