Model: R3100 | UPC: 800837002570

Measures gauge and differential pressure in 11 units of measure.

Datasheet

REED R3100 Offers

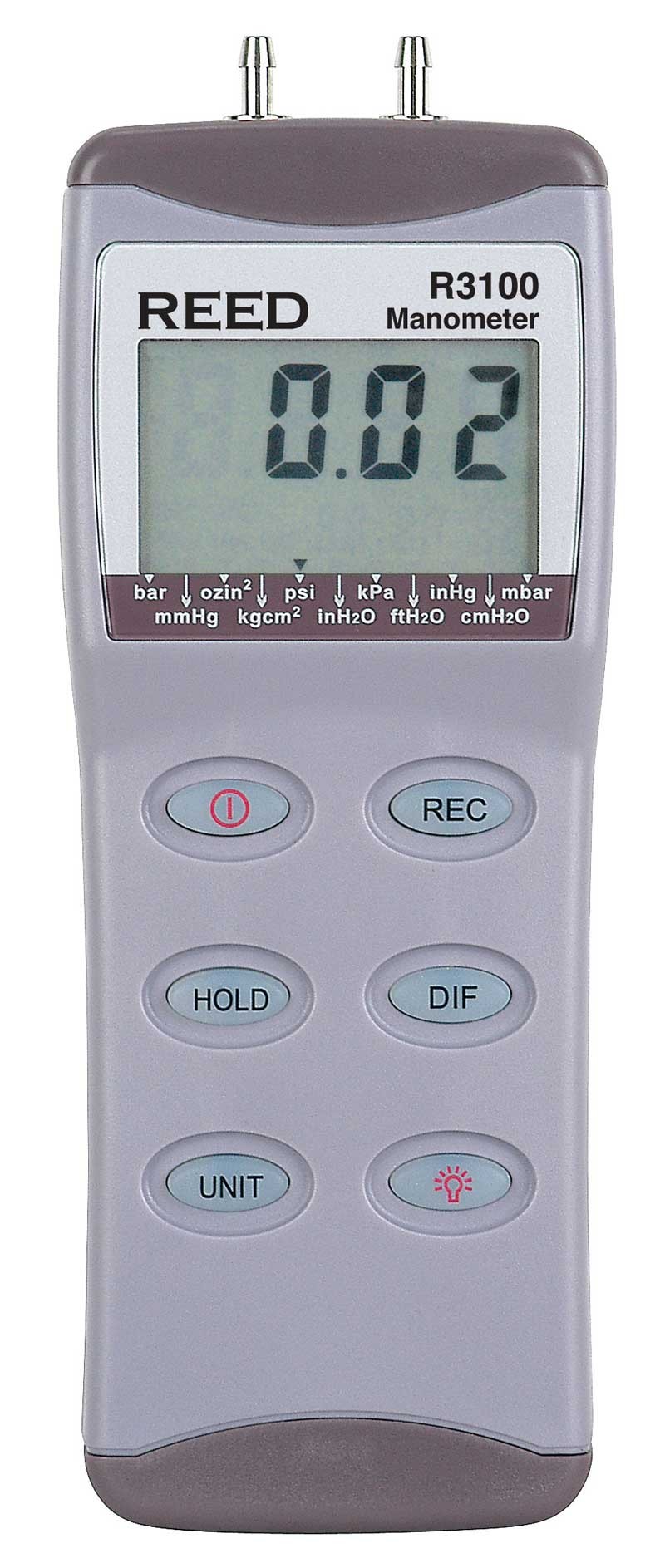

This digital manometer provides accurate measurements in 11 different units of measure and is capable of taking gauge and differential pressure. The R3100 features a backlit LCD display and internal memory to capture maximum and minimum measurements.

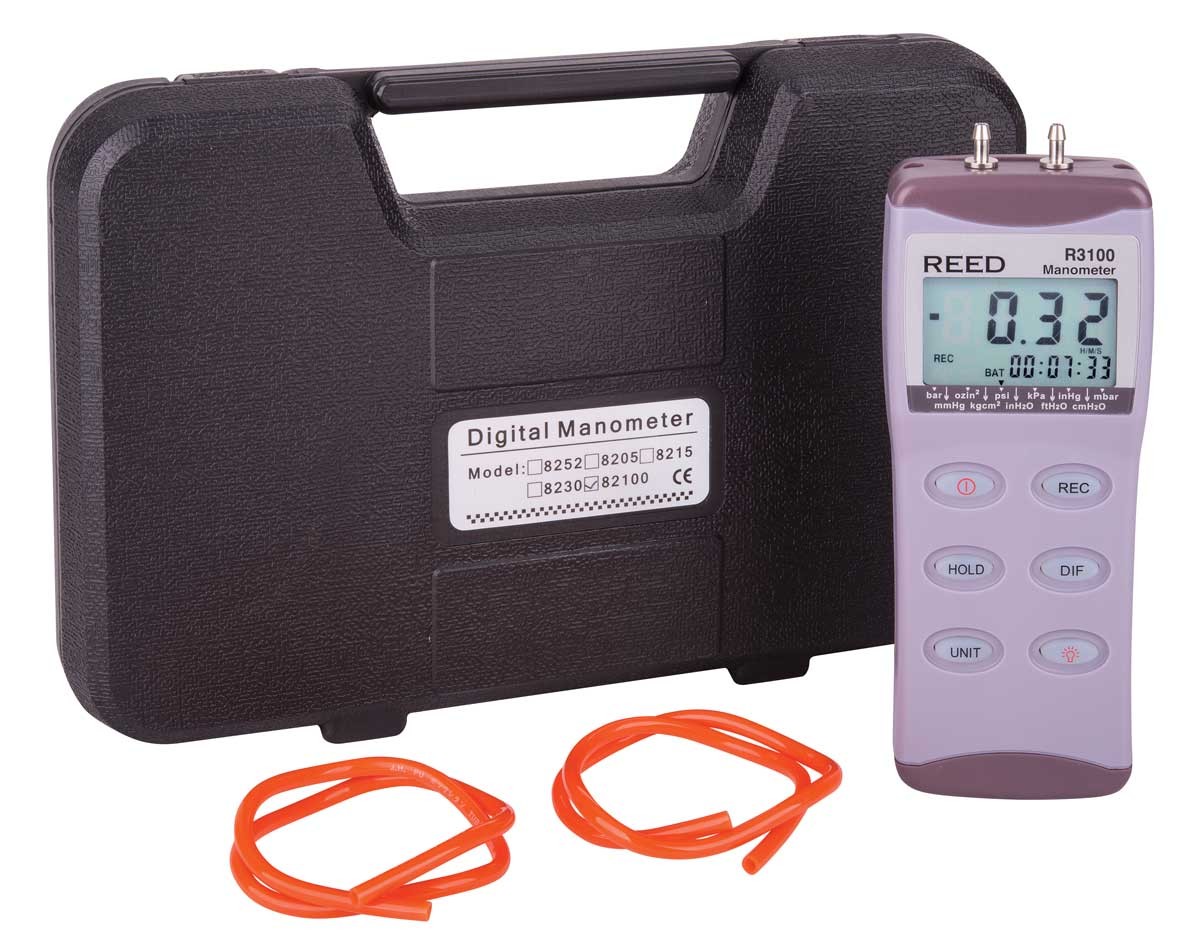

What’s included with the REED R3100

  • Digital Manometer
  • 2 Connection Hoses
  • Battery
  • Hard Carrying Case

Features

  • Measures gauge and differential pressure up to 100psi
  • 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin², ftH2O, cmH2O, kgcm²
  • Displays pressure and real-time clock simultaneously
  • Easy-to-read backlit LCD display
  • Internal memory saves Max and Min measurements
  • Data hold function
  • Low battery indicator and auto shut off

Ideal Applications for the REED R3100

  • Troubleshoot heating ventilation and air conditioning (HVAC) systems and a variety of low-pressure pneumatic or gas systems
  • Pressure transmitter calibration for process instrumentation
  • Detect blockages in filters, condensers, and chillers (water filter steam power plant)
  • Testing of pressure switches and other relief devices
  • Calibrating pressure transmitters
  • Calibrating pressure recorders
