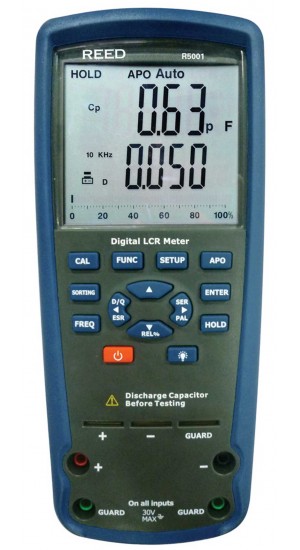

REED R5001 LCR Meter

Description

Model: R5001 | UPC: 800837001184

LCR measurements with test frequency up to 100kHz.

Manual Datasheet

REED R5001 Offers

This LCR meter measures inductance, capacitance, and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle (Ø), and equivalent series/parallel resistance (ESR or Rp). The R5001 features an easy-to-read LCD display with backlight, and data hold/relative functions.

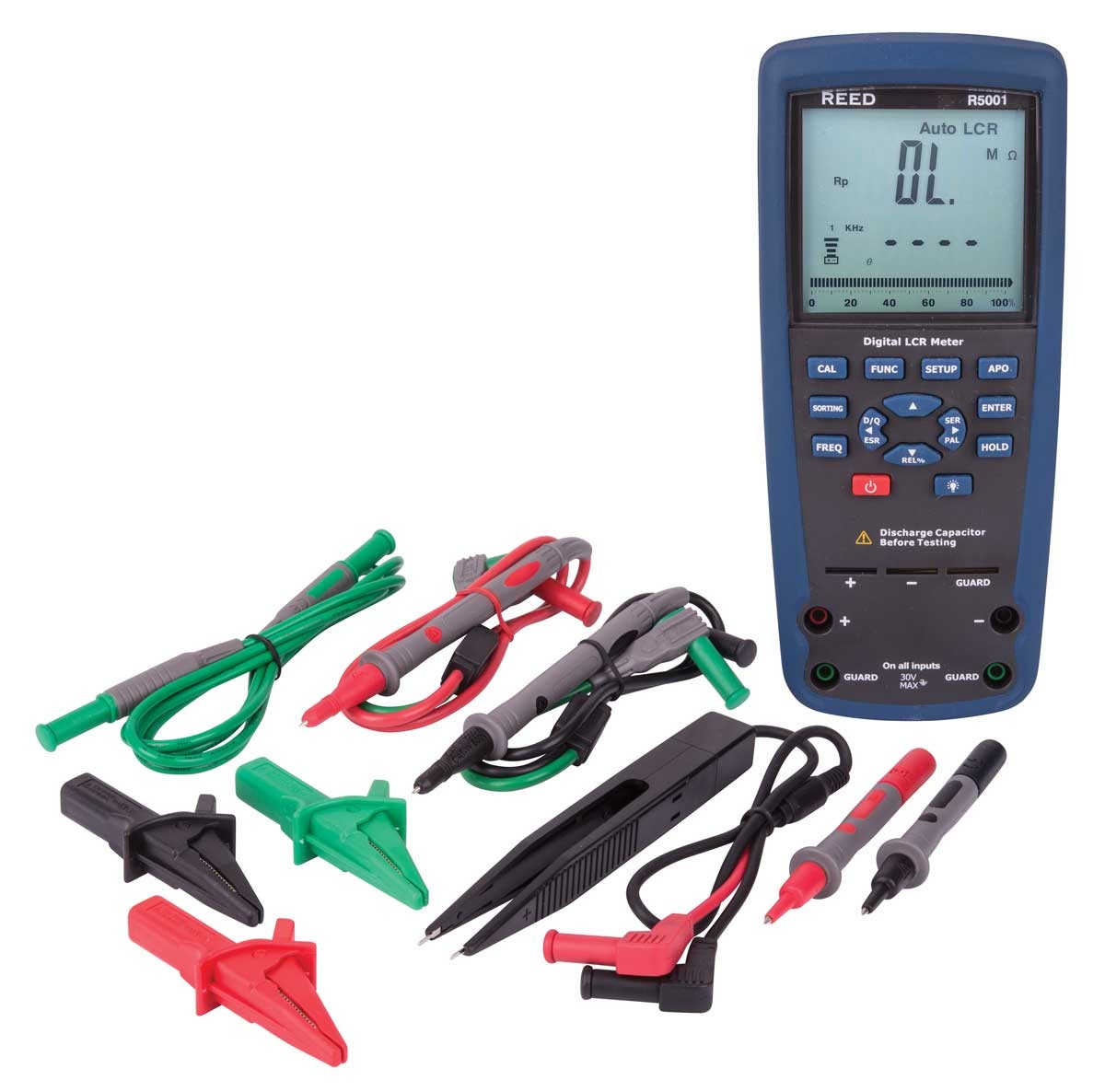

What’s included with the REED R5001

  • LCR Meter
  • Test Leads and Probes
  • Tweezers
  • Alligator Clips
  • Batteries

Features

  • Measures inductance, capacitance, and resistance
  • Autoranging for AC impedance and DE resistance measurement
  • Auto LCR smart check and measurement
  • Series/Parallel modes
  • Ls/Lp/Cp with D/Q/Ø/ESR parameters
  • Support DCR mode 200Ω to 200MΩ
  • High accuracy with 4 / 5 terminal Kelvin measurement
  • 10kHz testing frequency and up to 100kHz output frequency
  • Backlit dual LCD display
  • Data hold and relative functions
  • Low battery indication with auto power off
