Model: R5015 | UPC: 800837002846

Compact mA/A clamp meter with a built-in non-contact voltage (NCV) detector.

Datasheet Manual

REED R5015 Offers

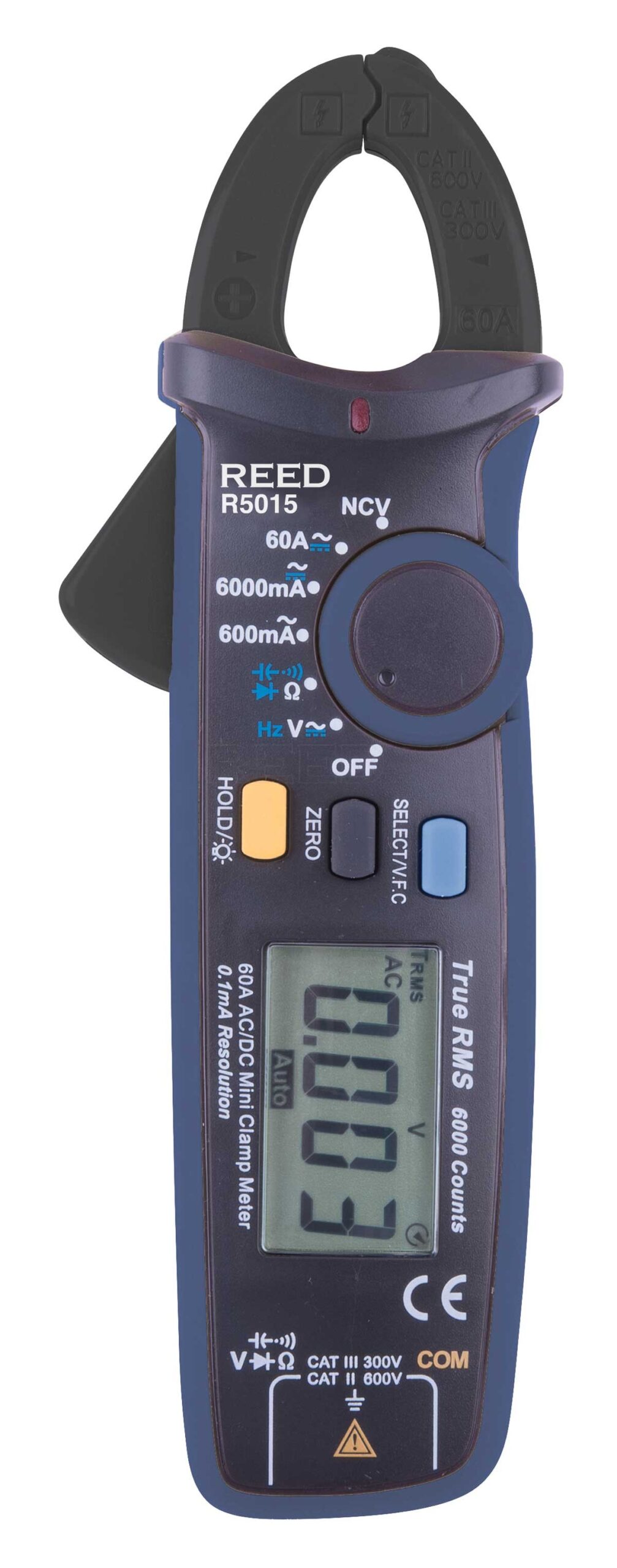

This compact auto-ranging mA clamp meter is capable of measuring AC/DC current/voltage, resistance, and capacitance. The R5015 features high-resolution AC/DC mA readings on a 6000-count backlit LCD display, diode check and continuity functions, and a non-contact voltage detector built into the clamp tip.

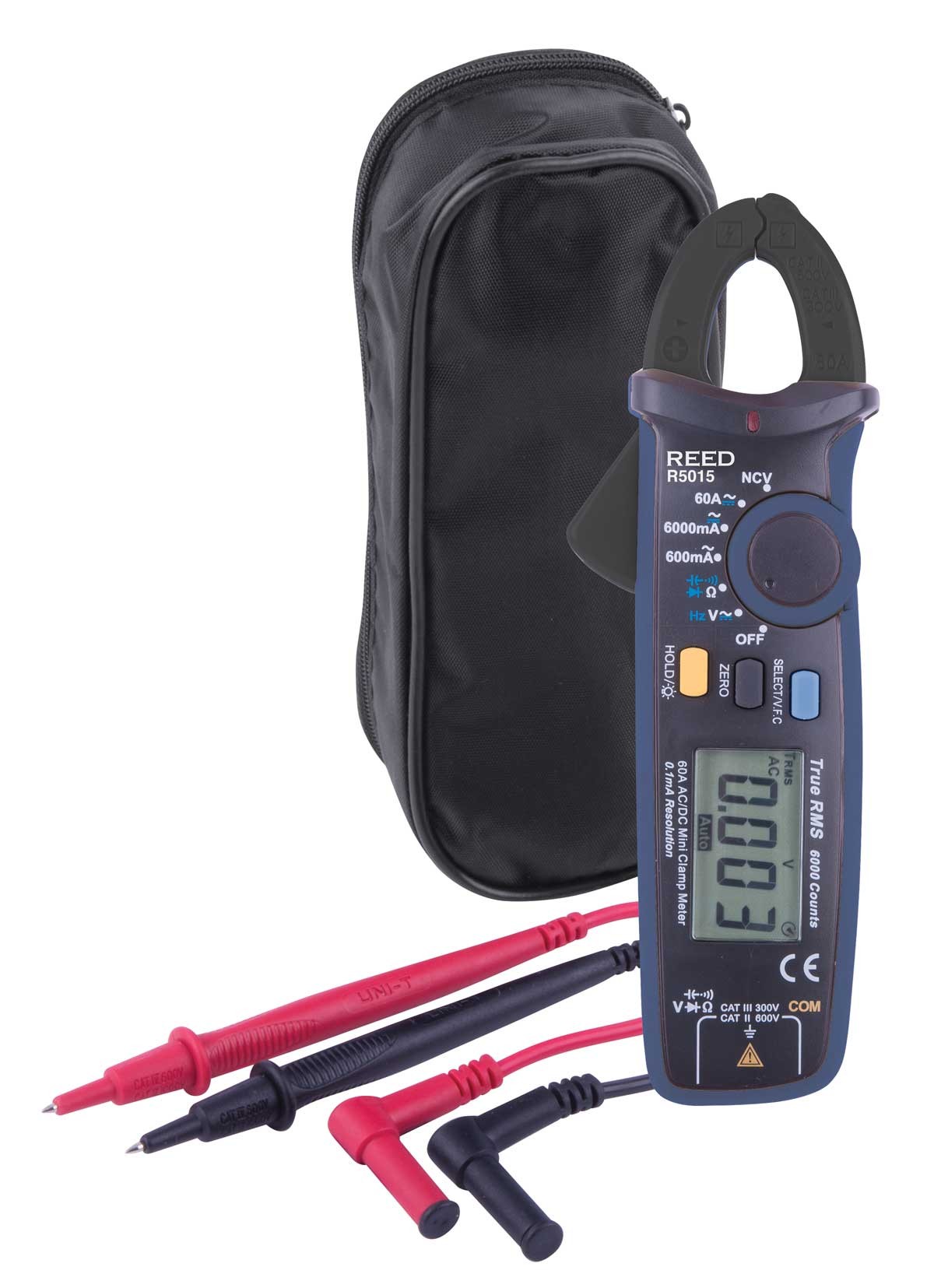

What’s included with the REED R5015

  • R5015 mA Clamp Meter
  • Test Leads
  • Batteries
  • Soft Carrying Case

Features

  • Measures AC/DC current/voltage, resistance, and capacitance
  • High resolution 0.1 mA (AC) and 1 mA (DC)
  • True RMS for AC current/voltage
  • 6000-count backlit LCD display
  • Built-in non-contact Voltage detector with LED indicator
  • V.F.C (variable frequency control) mode for air-conditioner maintenance and diagnostics
  • Low battery and over range indicators
  • Diode test and continuity check functions
  • Durable double molded plastic housing
  • CAT. II 600V, CAT. III 300V safety rating
  • Auto shut-off

Ideal Applications for the REED R5015

Applications

  • Verifying industrial processes involving mA instrumentation
  • Maintenance of variable frequency driven air conditioning systems
