REED SD-1128 Data Logging Light Meter

Description

Model: SD-1128 | UPC: 800837001818

Real-time data logger with an integrated SD memory card (optional) measures/records ambient light levels in Foot Candles or Lux and contact temperature with optional type J/K thermocouple probe.

Manual Datasheet

REED SD-1128 Offers

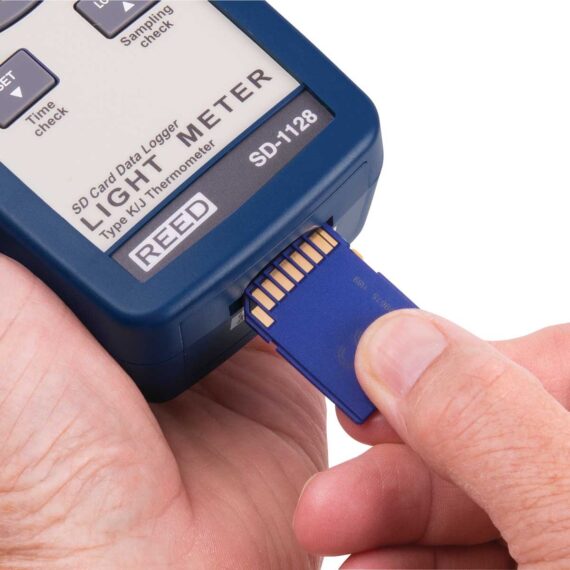

This SD series data logging light meter has a wide measurement range up to 100,000 Lux (10,000 Foot Candles) and features user-selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select the desired sampling rate and quickly generate an Excel file without the use of the software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. The optional PC software also allows a user to track live measurements.

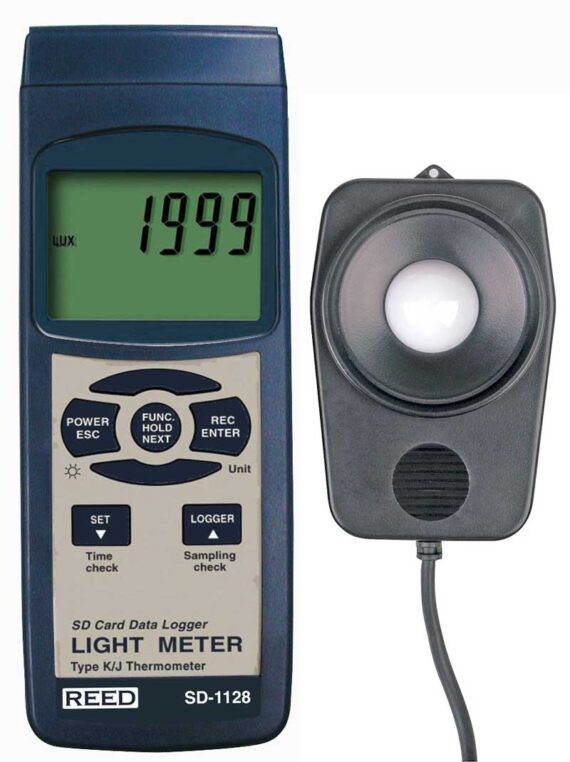

What’s included with the REED SD-1128

  • Light Meter Datalogger
  • Detachable Sensor
  • Sensor Cover
  • Batteries

Features

  • Measures ambient light levels in Foot Candles or Lux
  • Photodiode and colour correction filters meet C.I.E. spectrum specifications
  • Contact temperature measurement with a type J/K thermocouple option
  • Temperature is measured in °C or °F
  • Real-time data logger with integral SD memory card
  • User-selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

Ideal Applications for the REED SD-1128

  • OSHA work environment compliance
  • Cinematography and photography applications
  • Museum exhibits
  • Lighting system installation
  • Environmental monitoring
  • Interior design projects
  • Industrial applications
