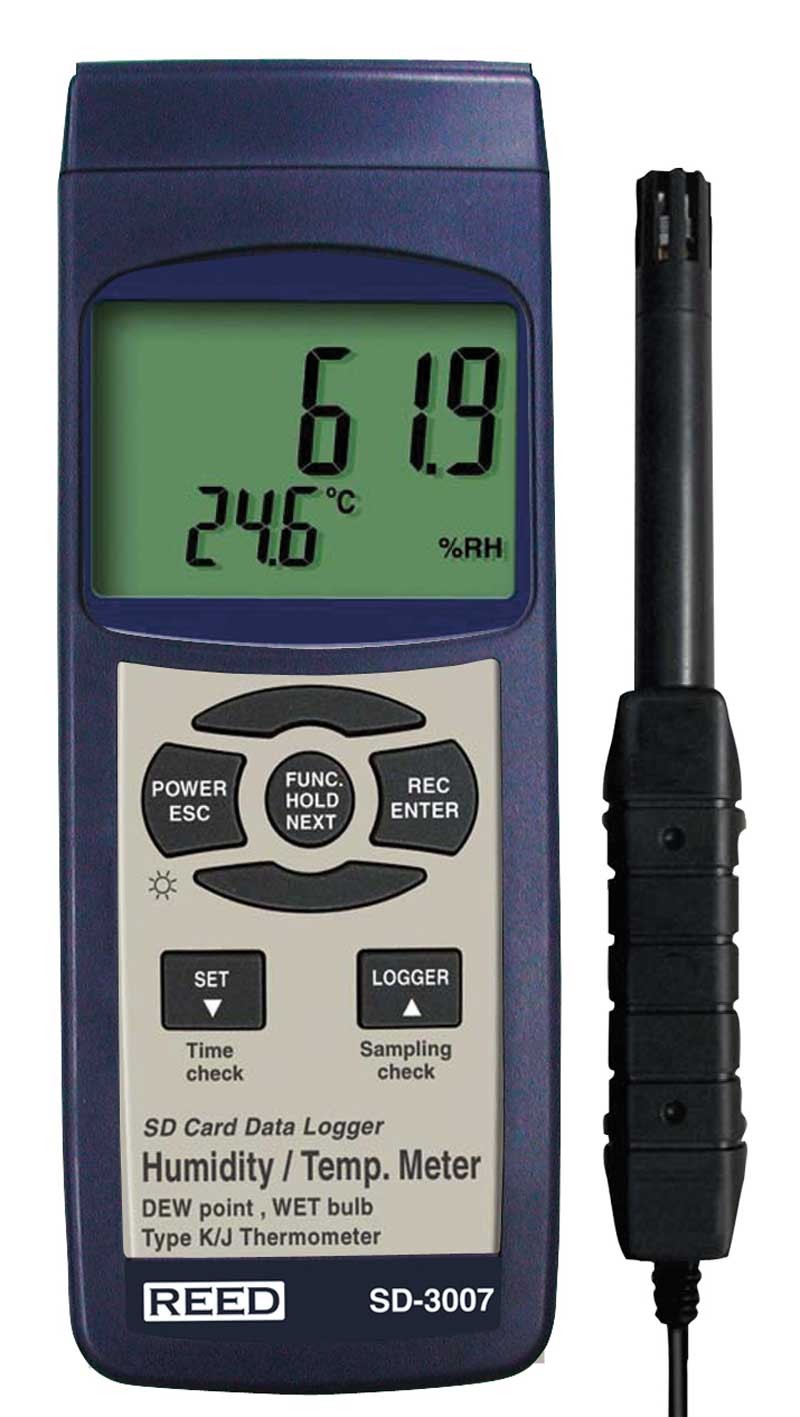

Model: SD-3007 | UPC: 800837001849

Real-time data logger with integrated SD memory card (optional) measures/records ambient temperature, relative humidity, dew point, and wet bulb temperatures as well as contact temperature with an integrated Type J/Type K thermocouple input.

Manual Datasheet

REED SD-3007 Offers

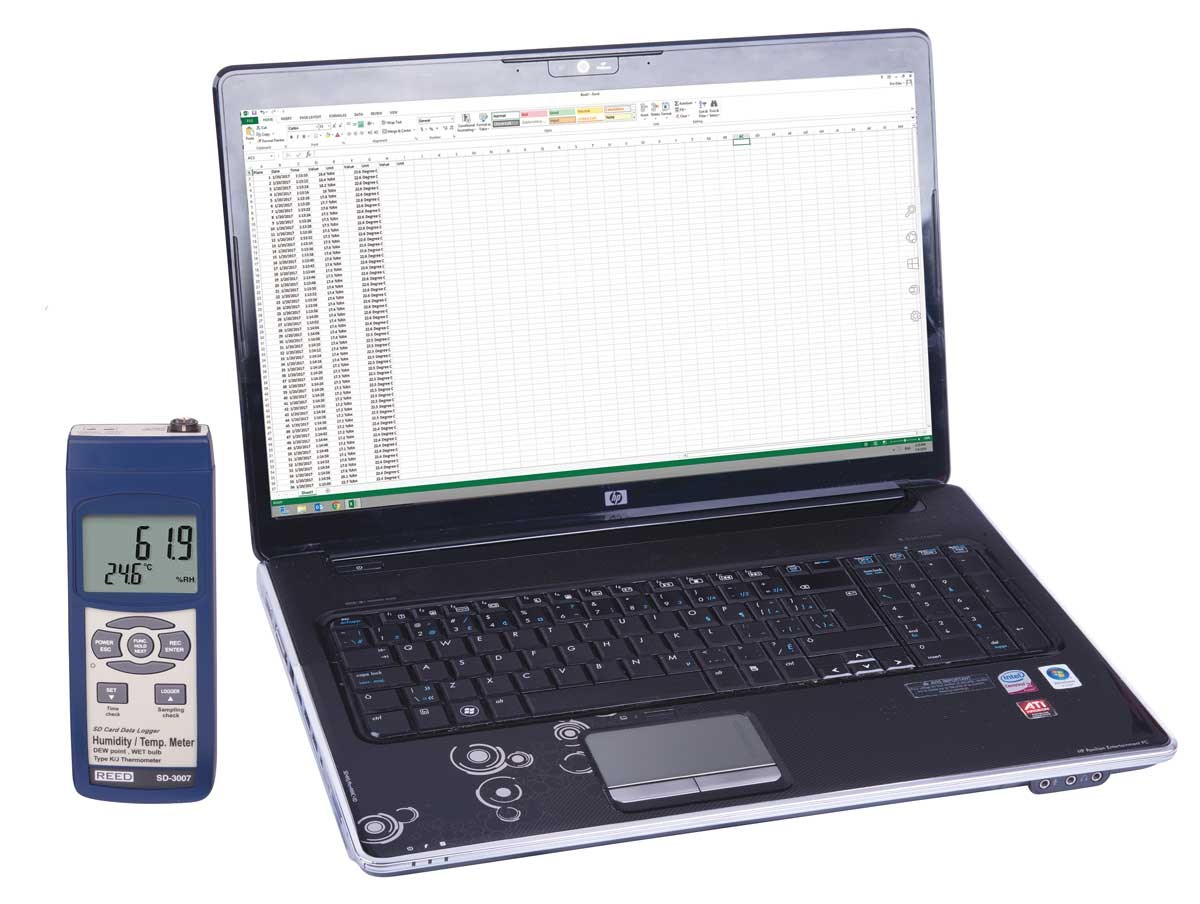

This SD series data logging thermo-hygrometer measures ambient temperature, relative humidity, dew point, and wet bulb temperatures as well as temperature with an integrated Type J/Type K thermocouple thermometer. The SD-3007 features automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using an SD card (max 16Gb), a user can select the desired sampling rate and quickly generate an Excel file without the use of the software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. The optional PC software also allows a user to track live measurements.

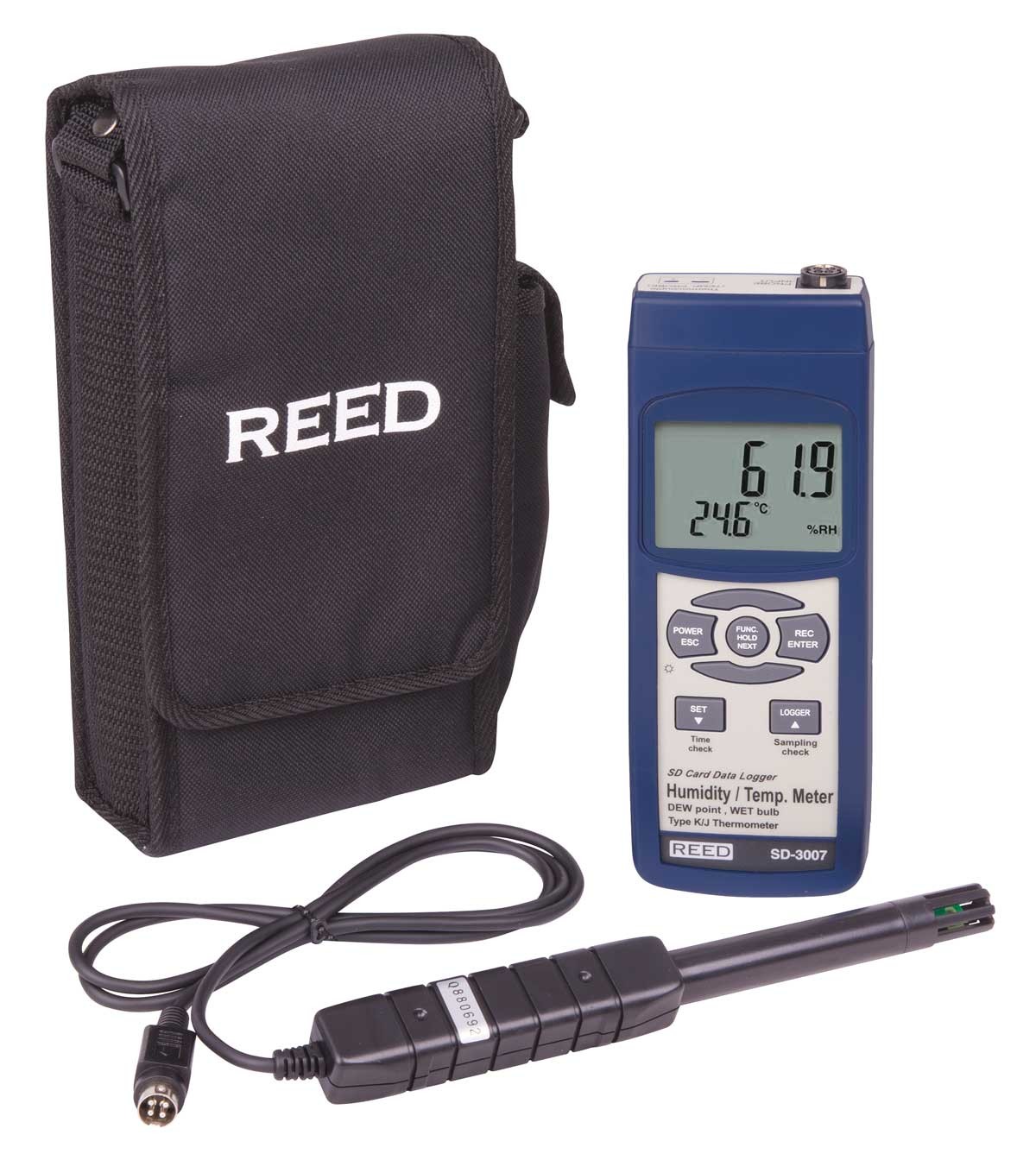

What’s included with the REED SD-3007

  • Thermo-Hygrometer Datalogger
  • Batteries
  • Carrying Case

Features

  • Measures relative humidity, ambient temperature, and dew point wet bulb temperatures
  • Contact temperature measurement with a type J/K thermocouple option
  • Temperature is measured in °C or °F

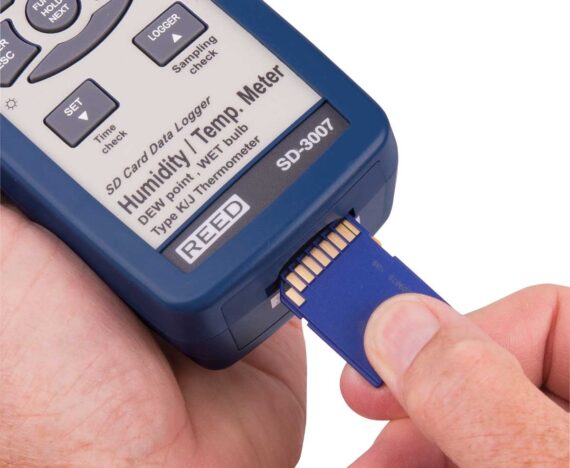

  • Real-time data logger with integral SD memory card
  • User-selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

Ideal Applications for the REED SD-3007

  • Environmental studies
  • Food distribution
  • HVAC/R system installation
  • Greenhouses and industrial spaces
  • Saunas
  • Humidors
  • Museums
  • Lab Monitoring
