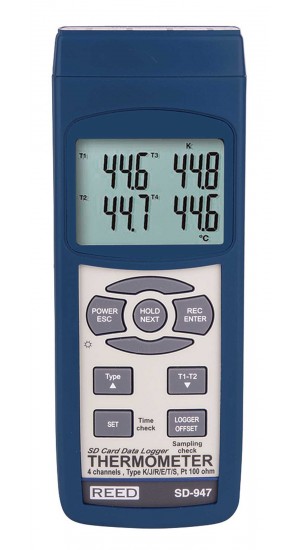

Reed Sd 947 Thermocouple Thermometer Data Logger

REED SD-947 Data Logging Thermometer

Description

Model: SD-947 | UPC: 800837001955

Real-time data logger with an integrated SD memory card (optional) measures/records up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J, R, S, E, T thermocouple, and RTD probes.

Manual Datasheet

REED SD-947 Offers

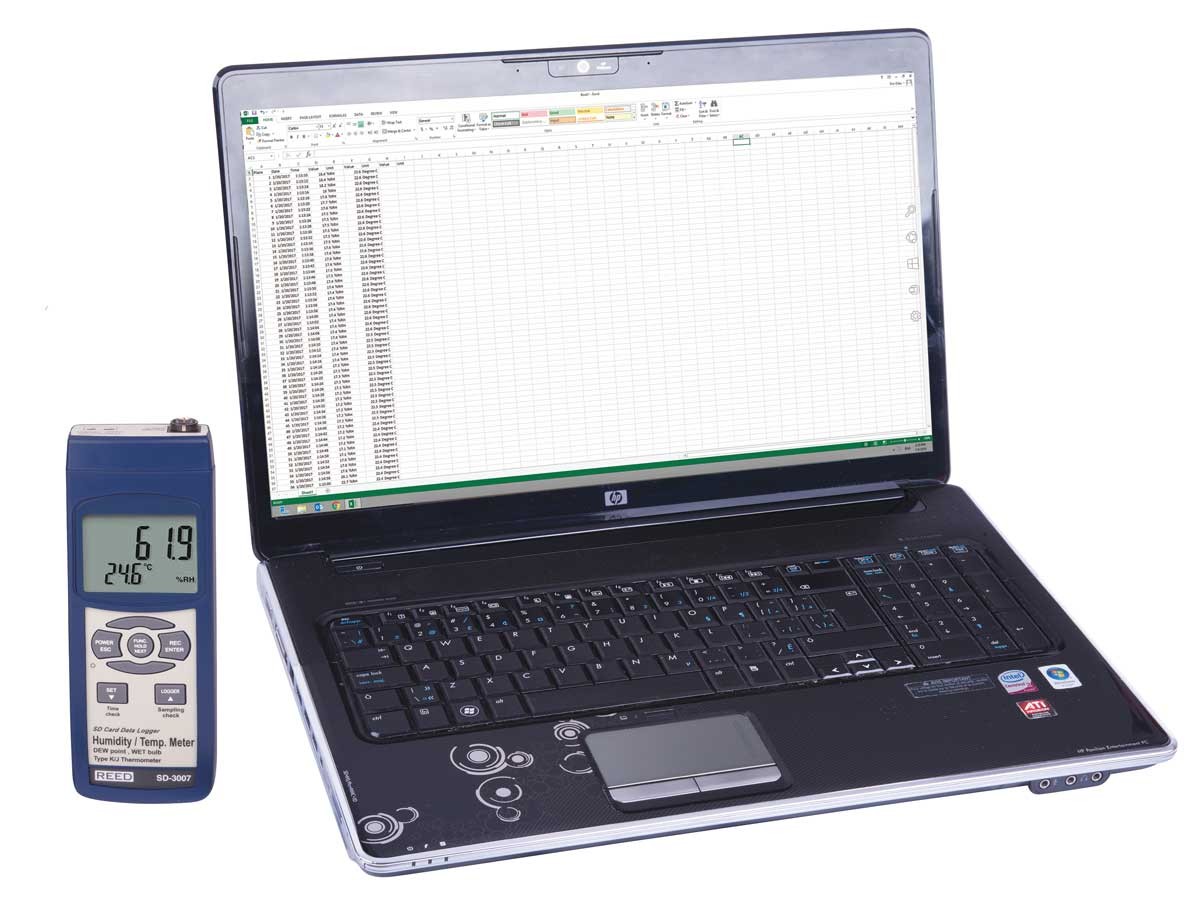

This SD series data logging thermometer measures Type K, J, R, S, E, T, and RTD and features user-selectable sampling rates from 1 to 3600 seconds. Using an SD card (up to 16Gb) a user can select the desired sampling rate and quickly generate an Excel file with raw data, all without the use of the software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring and PC software that allows a user to track live measurements on up to 4 separate channels.

What’s included with the REED SD-947

  • Thermocouple Thermometer/Data Logger
  • Batteries

Features

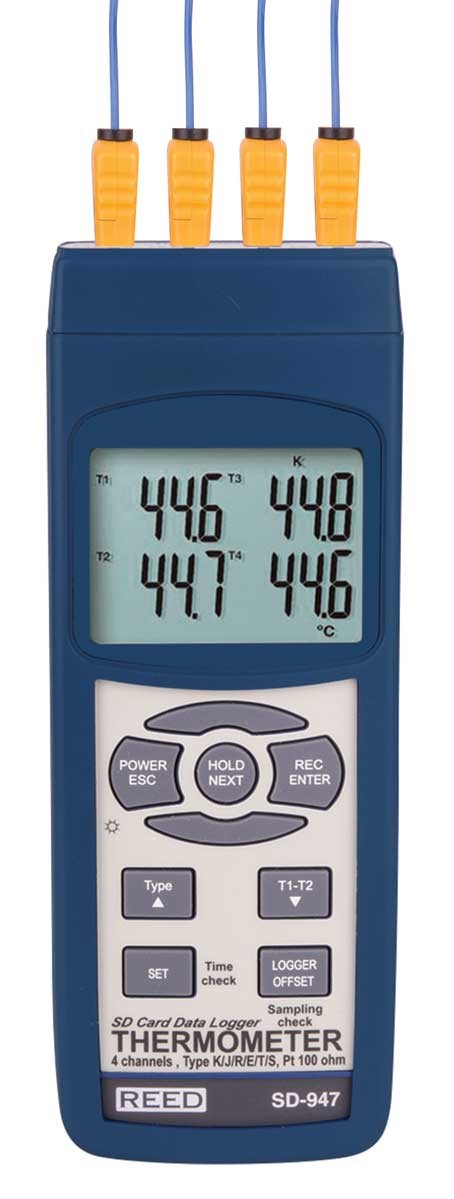

  • Displays up to 4 separate measurements simultaneously
  • Accepts Type K, J, R, S, E, T thermocouple and RTD probes
  • Temperature differential (T1-T2), Max/Min and Data hold functions
  • User-selectable °C, °F

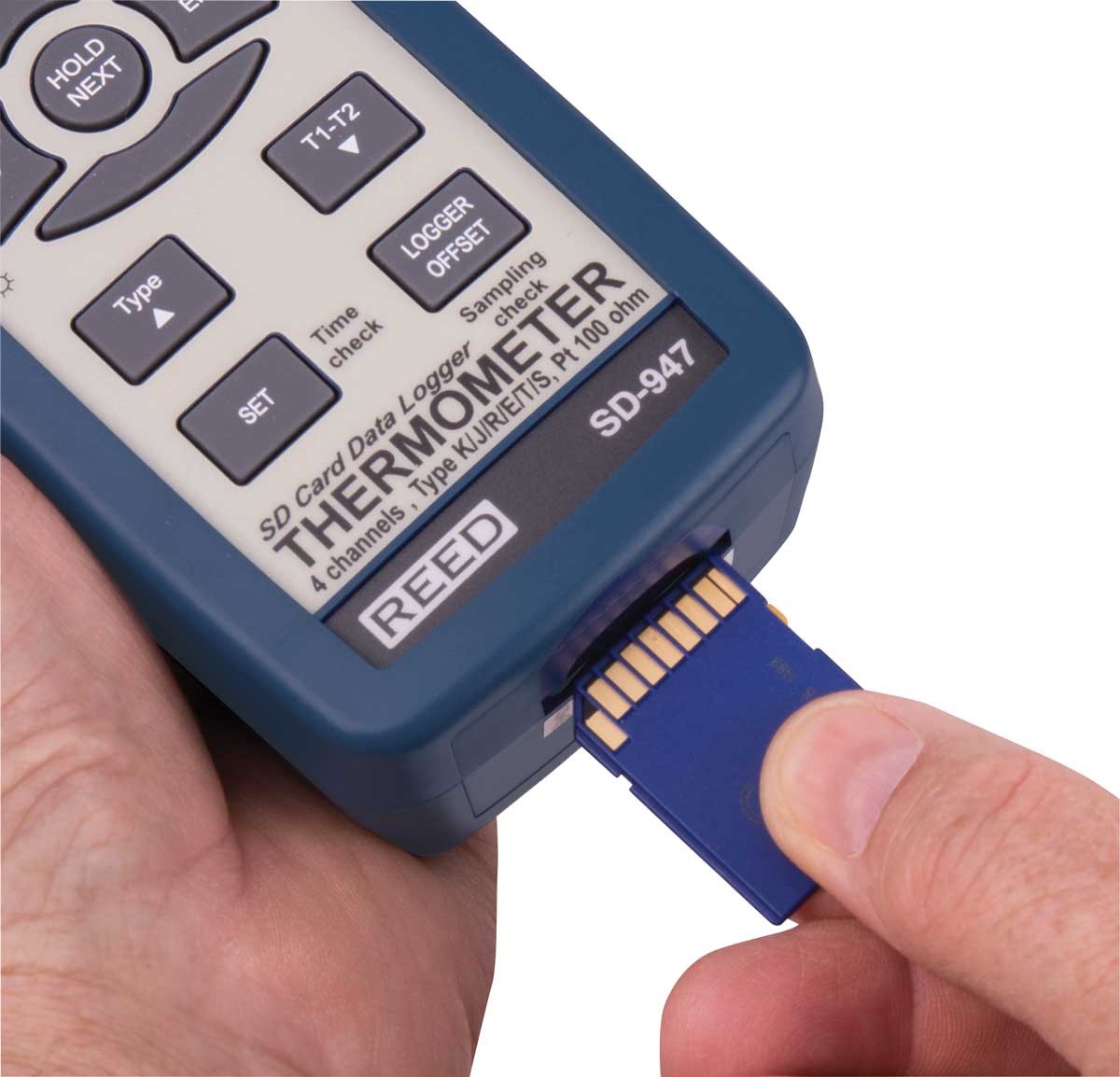

  • Real-time data logger with integral SD memory card
  • User-selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

Ideal Applications for the REED SD-947

  • Medical
  • Pharmaceutical
  • Environmental Monitoring
  • Industrial and Commercial Temperature Applications
  • R&D and Educational Establishments
  • Food Service
