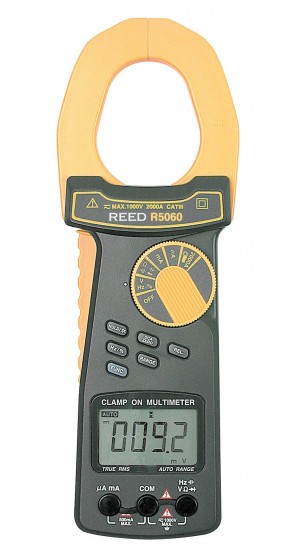

Model: R5060 | UPC: 800837000354

Industrial grade True RMS AC/DC clamp meter with 2.36″ (60mm) jaw opening and CAT. III 1000V protection rating.

Manual Datasheet

REED R5060 Offers

This heavy-duty auto-ranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, capacitance, duty cycle, and frequency. R5060 features include a 4,000 count backlit LCD display, kickstand and durable ABS housing.

What’s included with the REED R5060

  • True RMS AC/DC Clamp Meter
  • Test Leads
  • Battery


  • Measures AC/DC current/voltage, resistance, capacitance, duty cycle and frequency
  • 4000-count backlit LCD display
  • Low battery and over range indicators
  • True RMS measurements
  • Zero buttons, display hold, and relative mode
  • Diode test and continuity check functions
  • Durable heavy-duty ABS housing with kickstand
  • Cat. III 1000V safety rating

Ideal Applications for the REED R5060

Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.

Facilities, building maintenance, and electricians looking to troubleshoot electrical equipment installation problems.
