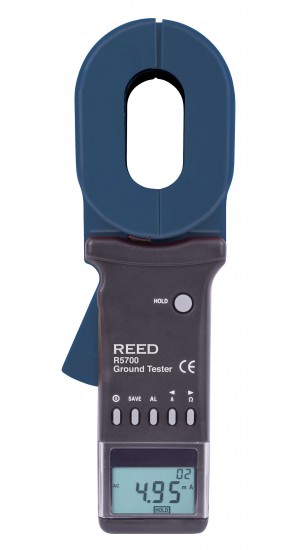

REED R5700 Clamp-On Ground Resistance Tester

Description

Model: R5700 | UPC: 800837002853

Enables non-contact measurements of ground conductors without the need for auxiliary ground spikes.

Manual  Datasheet

REED R5700 Offers

This auto-ranging earth resistance clamp meter measures ground resistance and leakage current. The R5700 has internal memory capable of storing up to 99 measurements, allow for a user to set alarm thresholds and features a double molded conductor clamp for added protection.

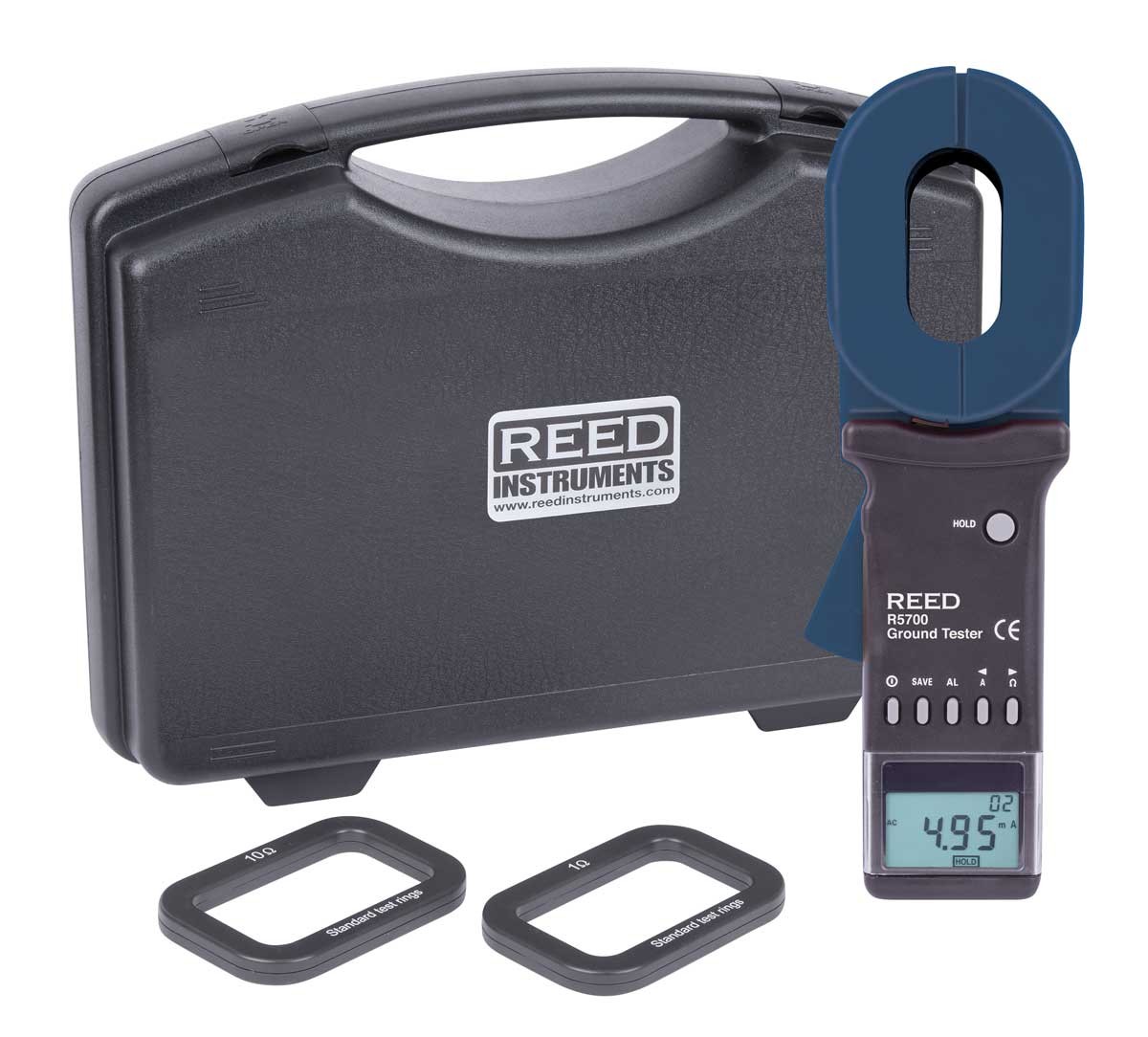

What’s included with the REED R5700

  • R5700 Ground Resistance Tester
  • 2 Resistance Calibration Loops (1Ω and 10Ω)
  • Batteries
  • Hard Carrying Case

Features

  • Auto-ranging ground resistance and leakage current measurements
  • 0.001Ω resolution for low resistance measurements
  • 9999-count backlit LCD display
  • Internal memory stores up to 99 readings
  • User-adjustable alarms
  • Data hold function
  • Durable double molded conductor clamp
  • 1.26″ (32mm) jaw size for large ground rods
  • Low battery indicator and auto shut off
  • Cat. III 300V safety rating

Ideal Applications for the REED R5700

  • Ground resistance of lightning arrestors
  • Electrical distribution equipment
  • Telecommunication systems
  • Oil field equipment
  • Gas station installations
